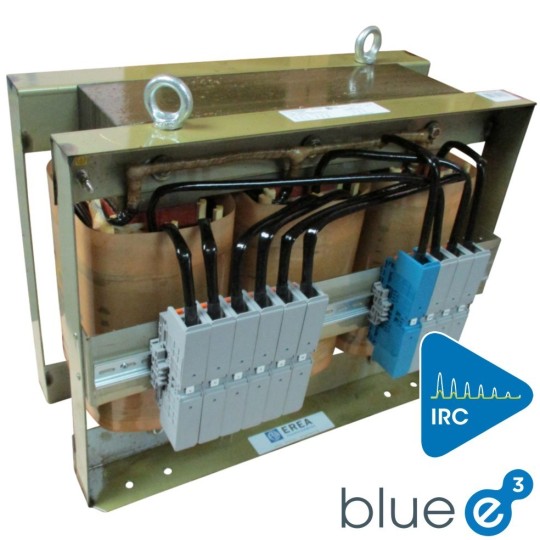

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 70000VA (70KVA) PVT70000/IRC

Name: EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 70000VA (70KVA) PVT70000/IRC
Brand: EREA
SKU: PVT70000/IRC
Price: 16758.52 EUR
Availability: InStock

Item No.: PVT70000/IRC

Trillingsdemper

€23.940,75 €16.758,52

(Price excluding VAT): €13.850,02

You Save: 30%

Request a quote?

Of betaal in termijnen vanaf €558,62 p/m. Meer info

EAN

5414503122414

SKU

PVT70000/IRC

Technical specifications
Brand	EREA
Commercial Order Number	PVT70000/IRC
EAN	5414503122414
Class	Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)

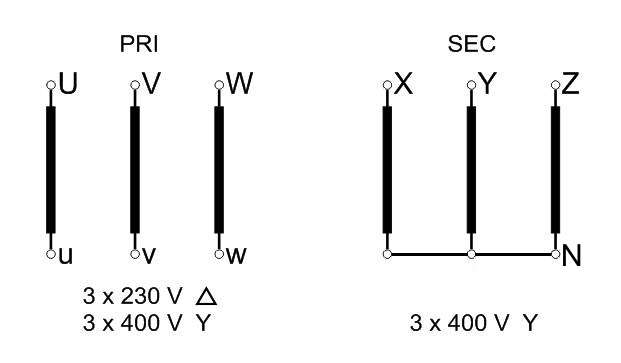

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 400 Vac Y+N
Rated power	70000VA (70KVA)
Degree of protection	IP00
Efficiency	97,9%
Voltage drop (dU%)	1.9%
Pcu (W)	940W
Po (W)	130W
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B

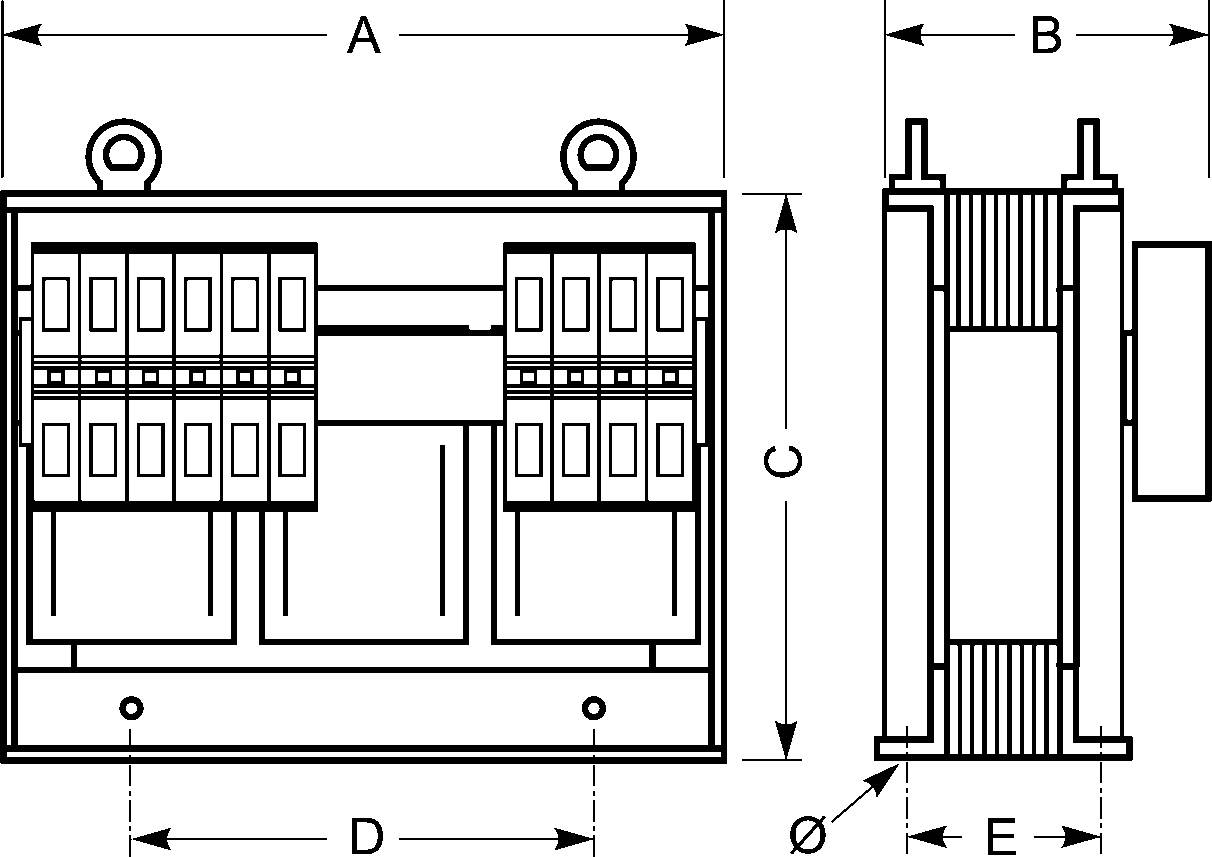

Size A x B x C (mm)	640x470x500mm
Size D (mm)	400mm
Size E (mm)	275mm
Weight	370kg
Primary connection	Moerbevestiging M8
Secondary connection	Moerbevestiging M8
Φ (mm)	11 mm
Protection Class	Prepared for Protection Class I

Options

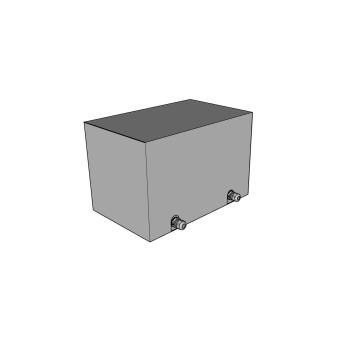

On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20PVT/070
Option enclosure IP23 (accessoire)	K23PVT/070
Option Damper (accessoire)	SILENT BLOCK 120

Technische_fiche_PVT70000_IRC_nl.pdf

Datasheet_PVT70000_IRC_en.pdf
