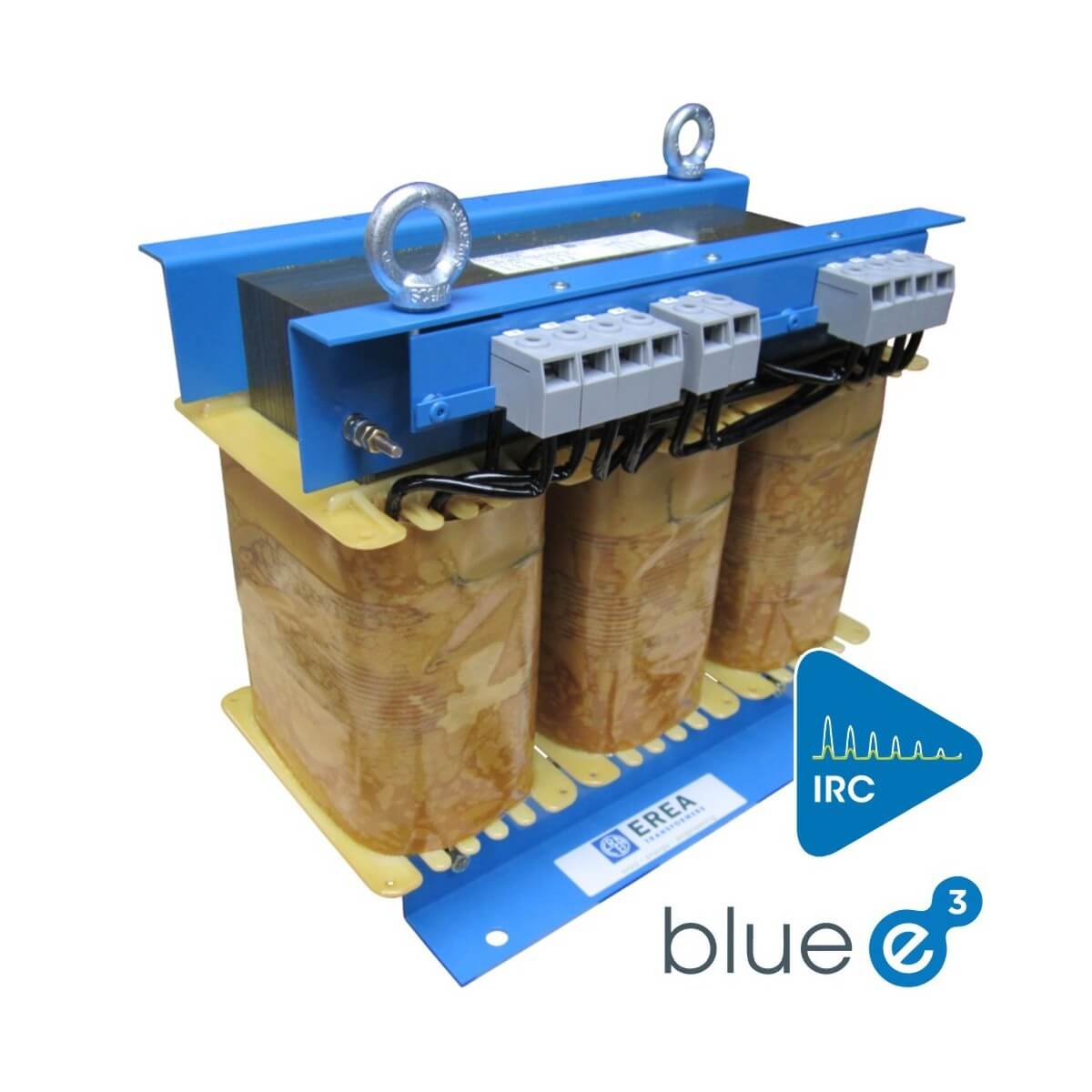

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 8000VA (8KVA) PVT8000/IRC

Item No.: PVT 8000/IRC
EREA

Delivery time: 2-3 weeks

Enclosure

Trillingsdemper

€6.304,02 €4.412,81
(Price excluding VAT): €3.646,95
You Save: 30%
Request a quote?

Of betaal in termijnen vanaf €147,09 p/m. Meer info

EAN
5414503118479
SKU
PVT 8000/IRC

Technical specifications
Brand EREA
Commercial Order Number PVT8000/IRC
EAN 5414503118479
Class Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)

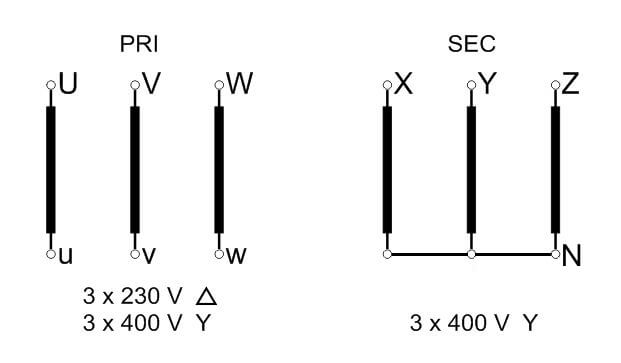

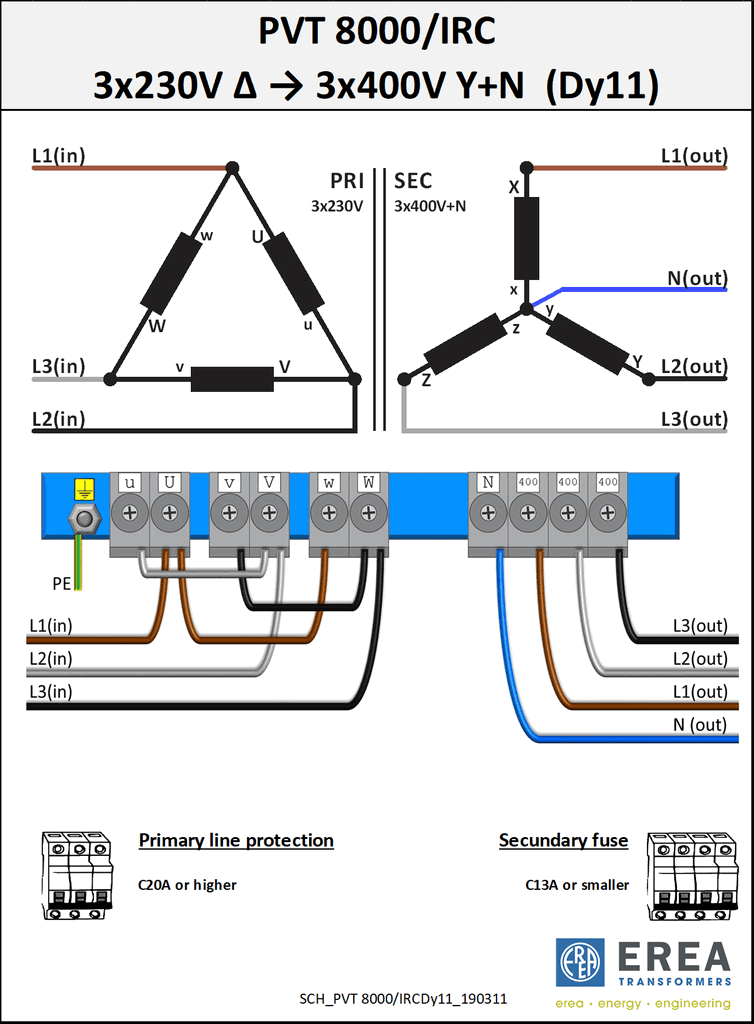

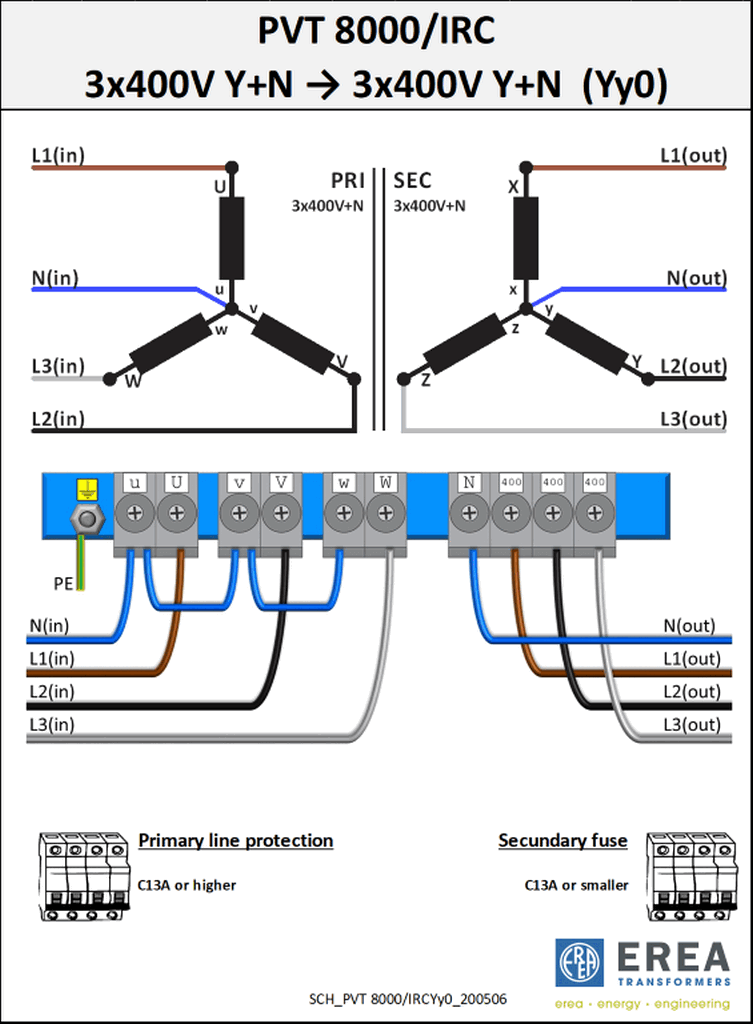

Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 400 Vac Y+N
Rated power 8000VA (8KVA)
Degree of protection IP00
Efficiency  97,4%
Voltage drop (dU%) 2.1%
Pcu (W) 170W
Po (W) 40W
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class B

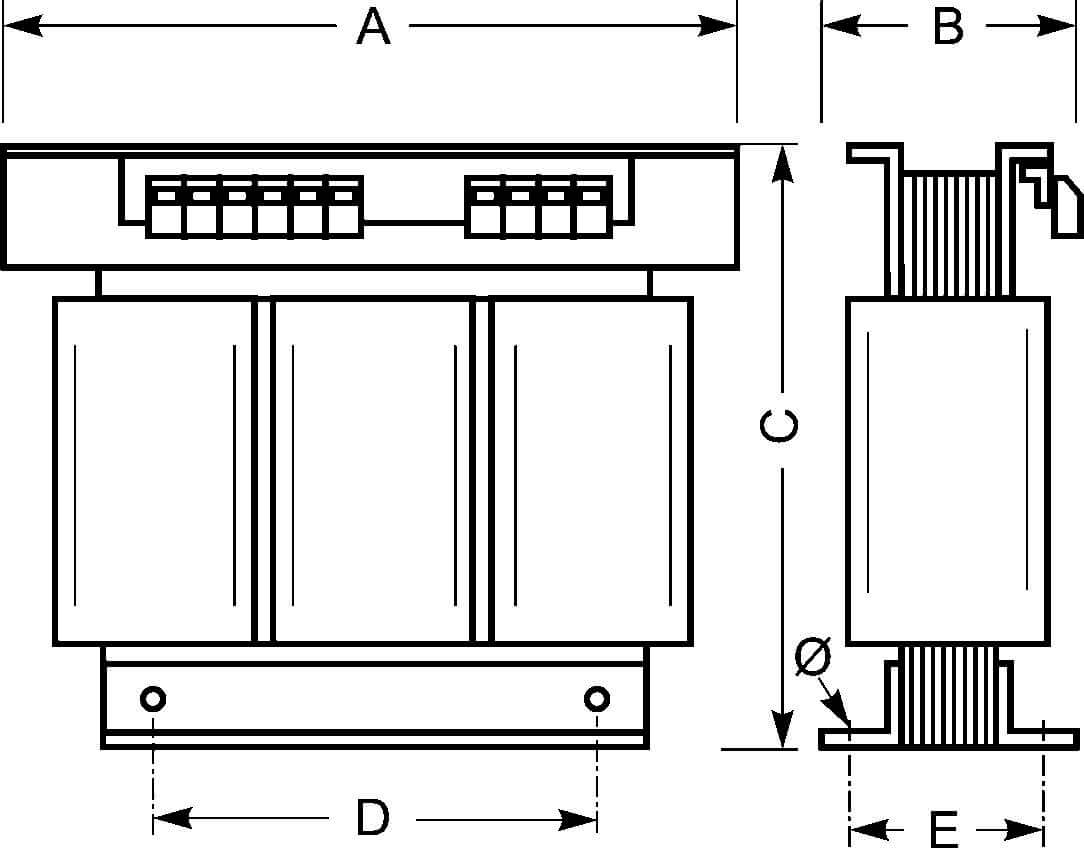

Size A x B x C (mm) 420x240x365mm
Size D (mm) 280mm
Size E (mm) 193mm
Weight 100kg
Primary connection Screw terminals 10 mm;
Secondary connection Screw terminals 10 mm;
Φ (mm) 11 mm
Protection Class Prepared for Protection Class I

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20PVT/010
Option enclosure IP23 (accessoire) K23PVT/010
Option Damper (accessoire) SILENT BLOCK 50
