SPT25000/BTE

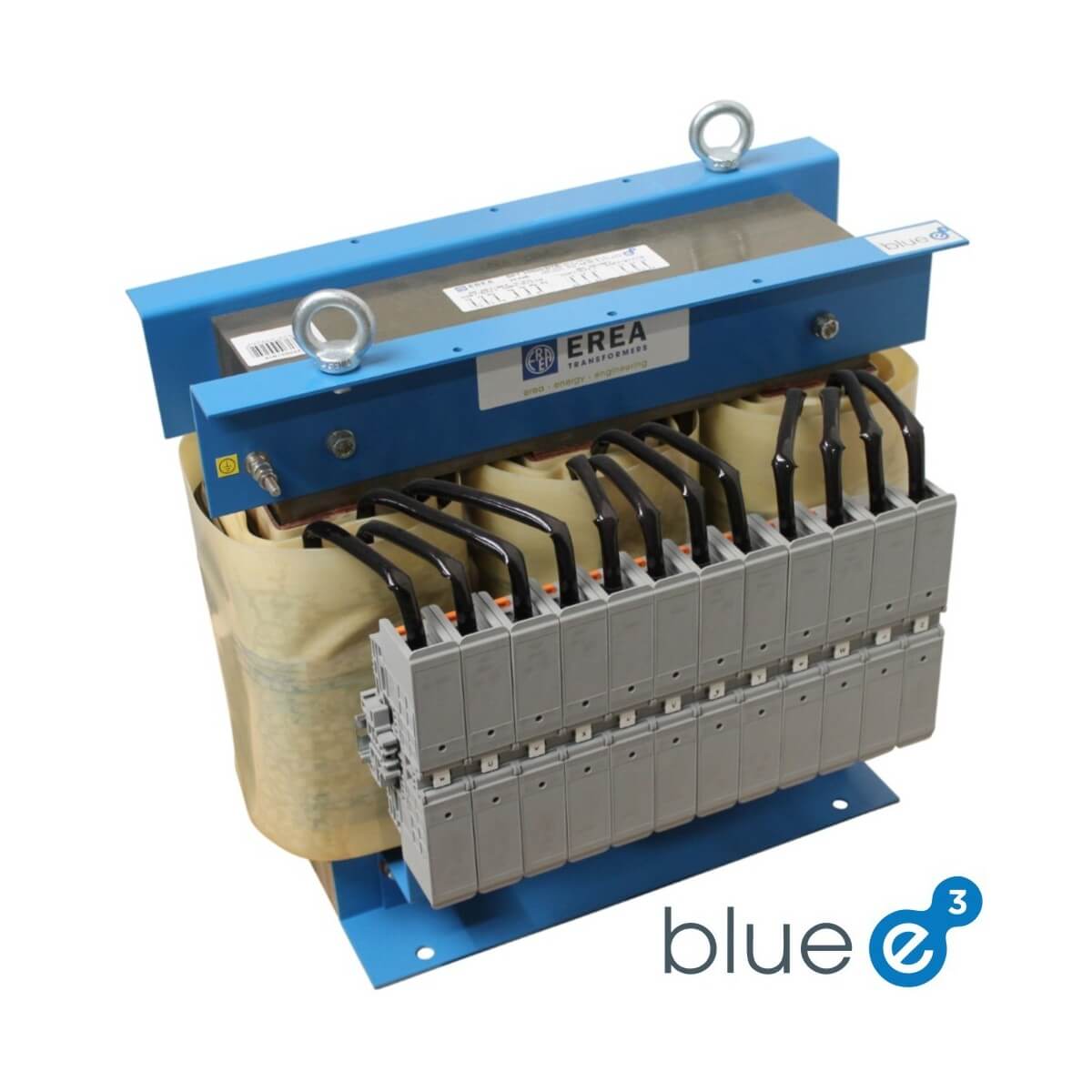

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE
Pin-it

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N (25KVA) SPT25000/BTE

Item No.: SPT25000/BTE
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€10.219,16 €7.153,41
(Price excluding VAT): €5.911,91
You Save: 30%

Of betaal in termijnen vanaf €238,45 p/m. Meer info

EAN
5414503099242
SKU
SPT25000/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT 25000/BTE
EAN 5414503099242
Class Energy Efficient Protective Transformer (BTE) - IP00 - Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N - Vermogen 25000VA

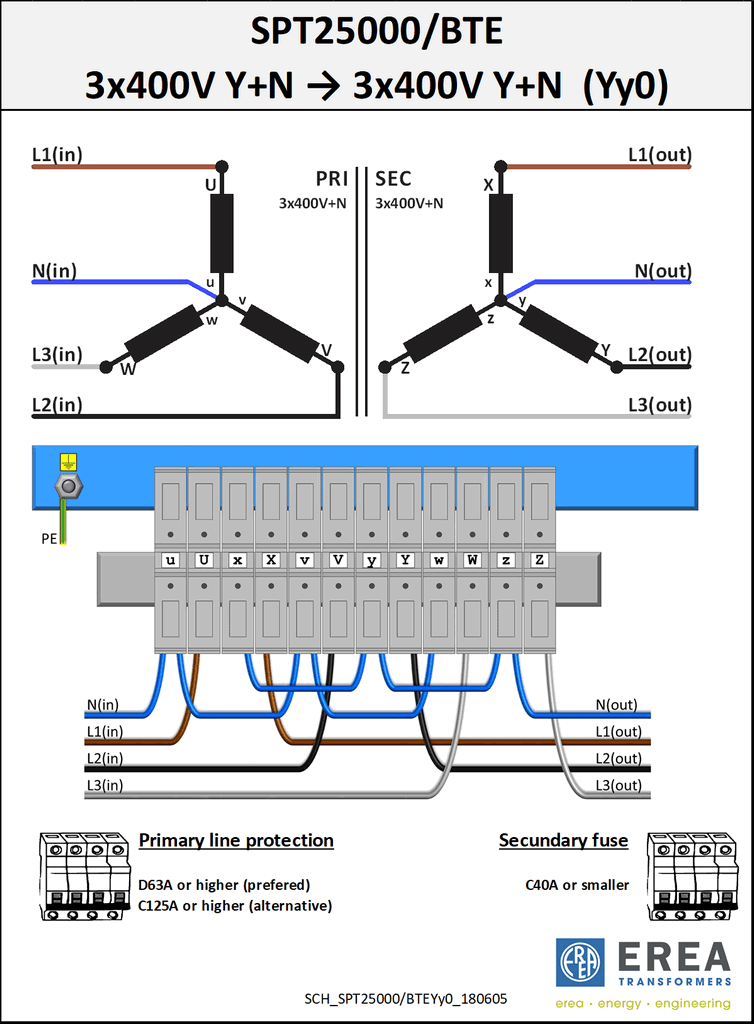

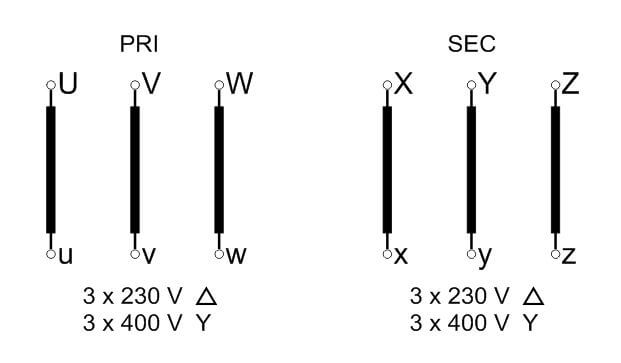

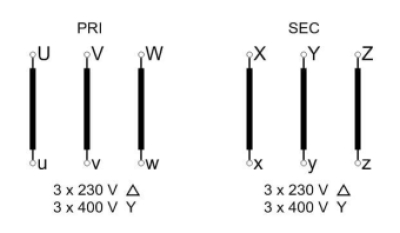

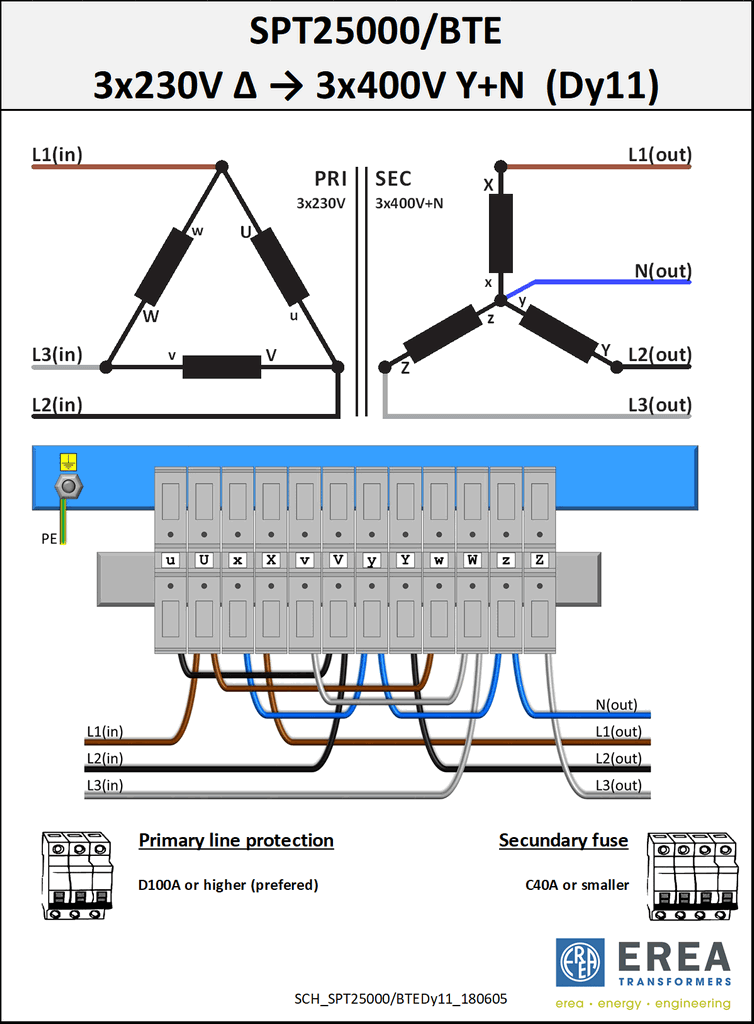

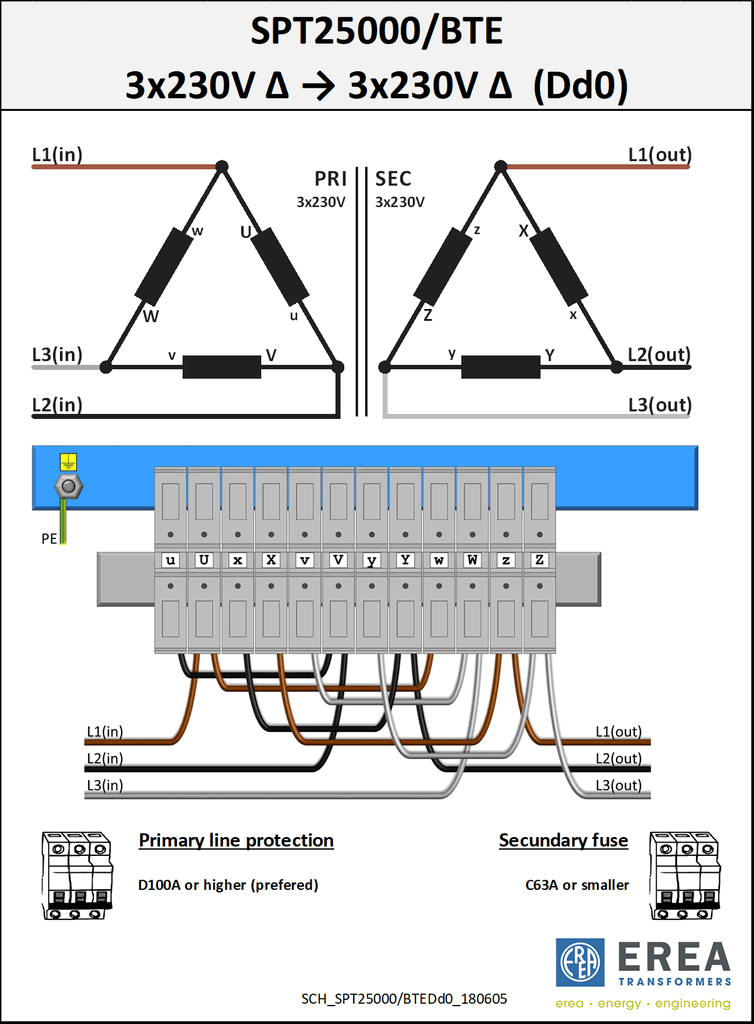

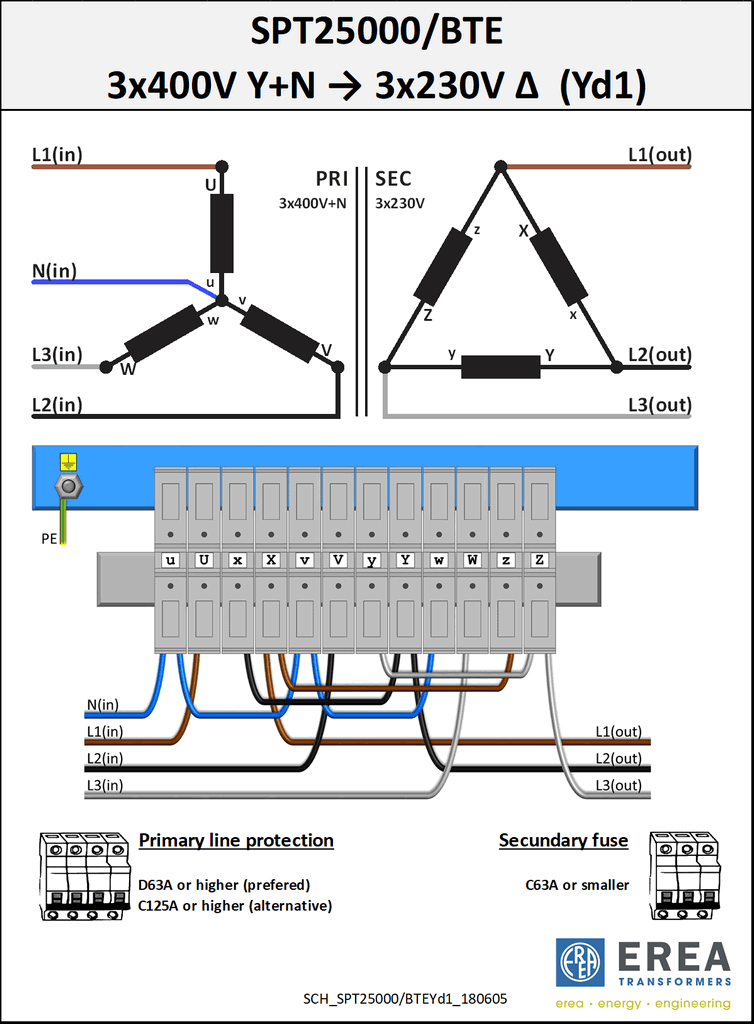

Primary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 25000VA (25KVA)
Degree of protection IP00
Efficiency  97,9%
Pcu (W) 387W
Po (W) 150W
Voltage drop (dU%) 1.42%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur Ta (°C) 40 °C
Temperature Class F

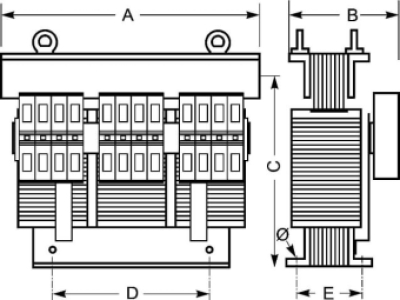

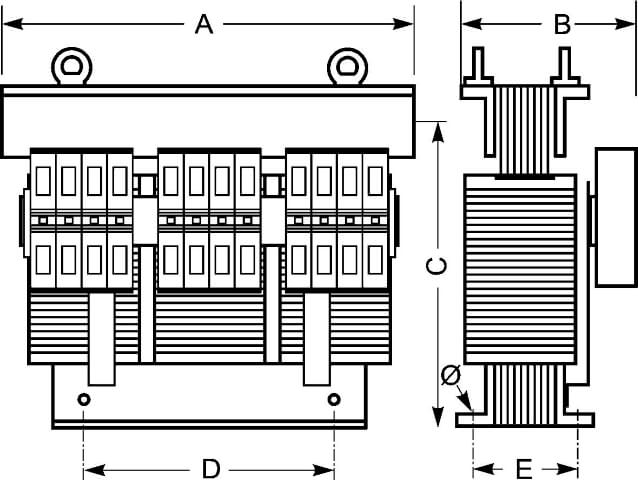

Size A x B x C (mm) 480x320x415mm
Size D (mm) 320mm
Size E (mm) 220mm
Weight 160kg
Primary connection Moerbevestiging M8
Secondary connection Moerbevestiging M8
Φ (mm) 11 mm
Finish Vacuum and pressure impregnated

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20BTE/050
Option enclosure IP23 (accessoire) K23BTE/055
Option Damper (accessoire) SILENT BLOCK 50
