spt10000/bte
Dimensions SPT10000BTE

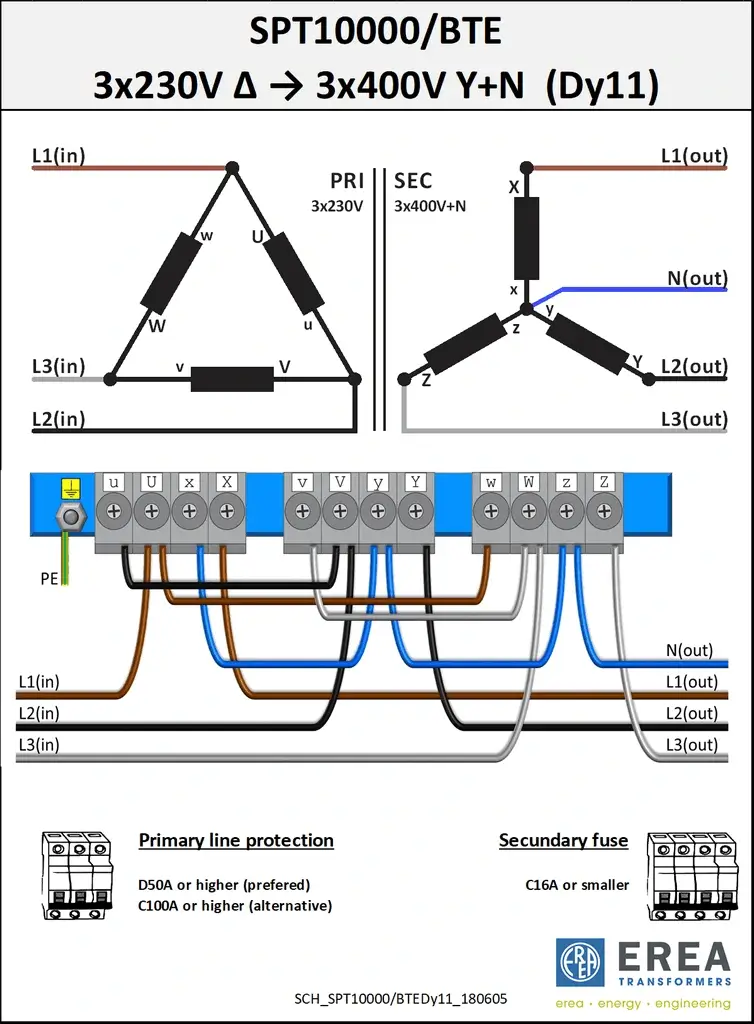

Connection Diagram Dy11 SPT10000BTE

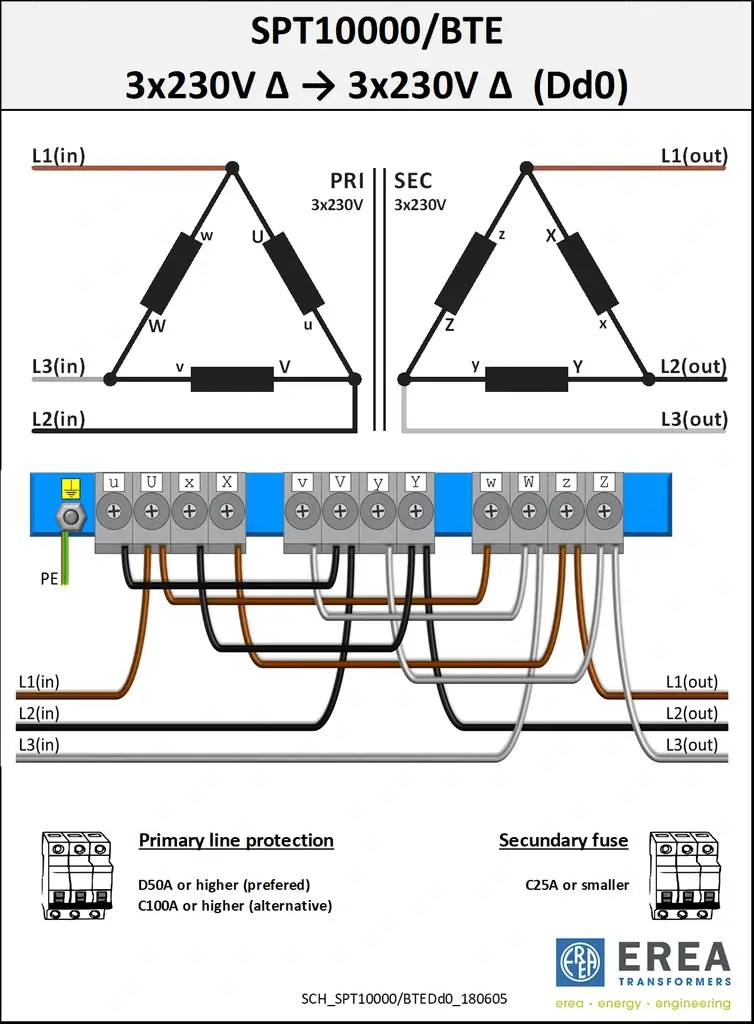

Connection Diagram DD0 SPT10000BTE

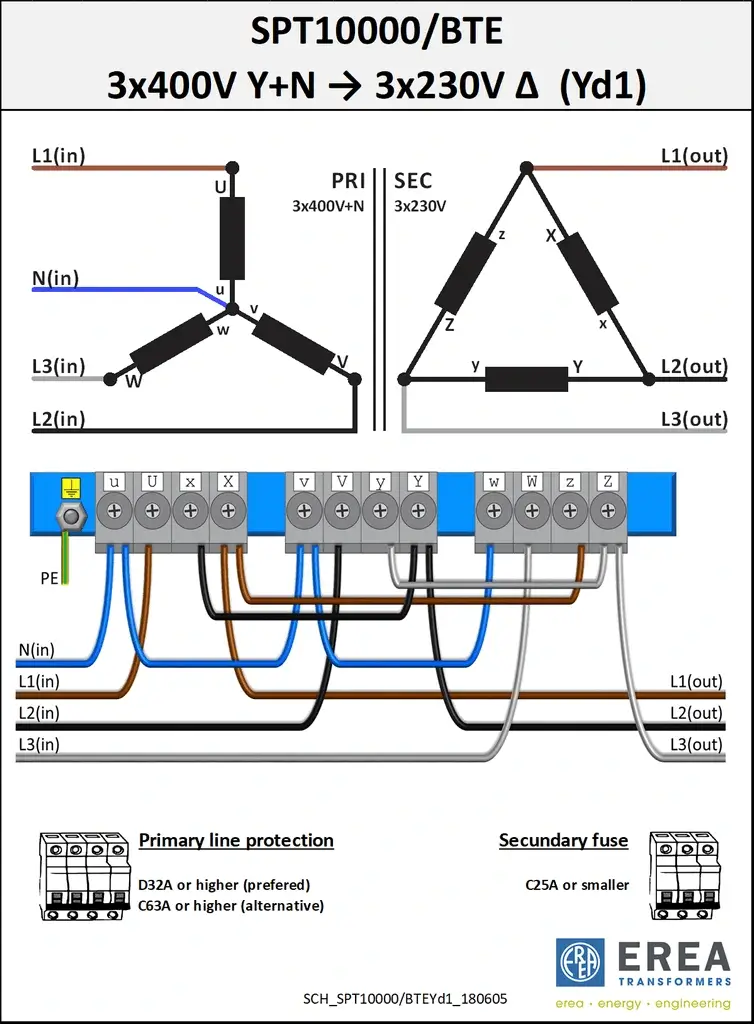

Connection Diagram Yd1 SPT10000BTE

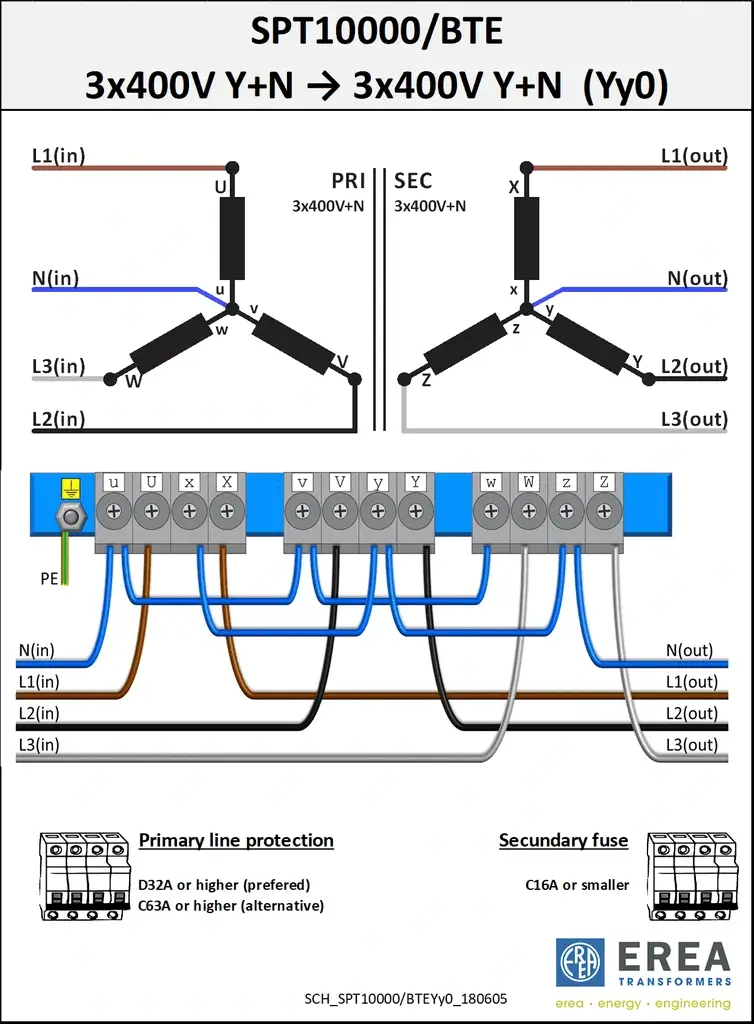

Connection Diagram Yy0 SPT10000BTE

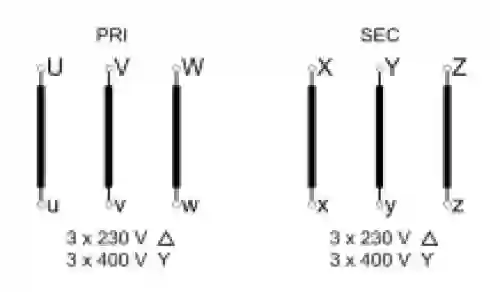

Electrical Diagram SPT10000BTE

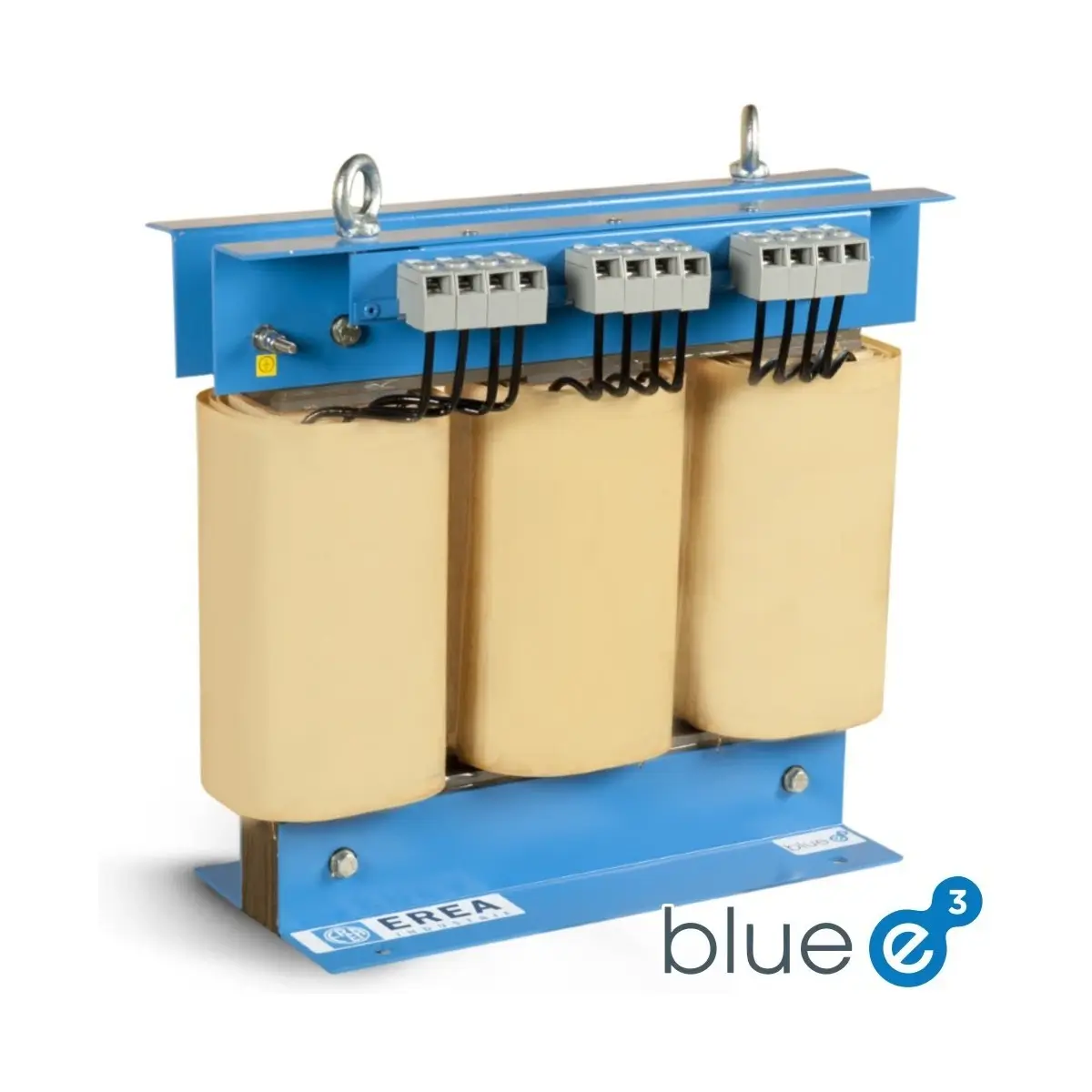

Transformator_SPT10000BTE
spt10000/bte
Dimensions SPT10000BTE
Connection Diagram Dy11 SPT10000BTE
Connection Diagram DD0 SPT10000BTE
Connection Diagram Yd1 SPT10000BTE
Connection Diagram Yy0 SPT10000BTE

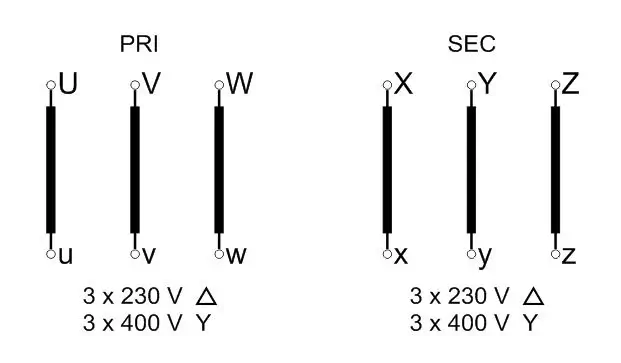

Electrical Diagram SPT10000BTE
Transformator_SPT10000BTE
Pin-it

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 10000VA (10KVA) SPT10000/BTE

Item No.: SPT10000/BTE
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€5.003,88 €3.752,91
(Price excluding VAT): €3.101,58
You Save: 25%

Of betaal in termijnen vanaf €125,10 p/m. Meer info

EAN
5414503099181
SKU
SPT10000/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT10000/BTE
EAN 5414503099181
Class Energy Efficient Protective Transformer (BTE)
Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 10000VA (10KVA)
Degree of protection IP00
Diëlektrische vastheid (Vac) 4500 Vac
Voltage drop (dU%) 2.03%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Max. ambient temperature Ta (°C) 40 °C
Temperature Class F
Application For Industrial Applications
Efficiency  97.1%
Pcu (W) 220W
Po (W) 78W

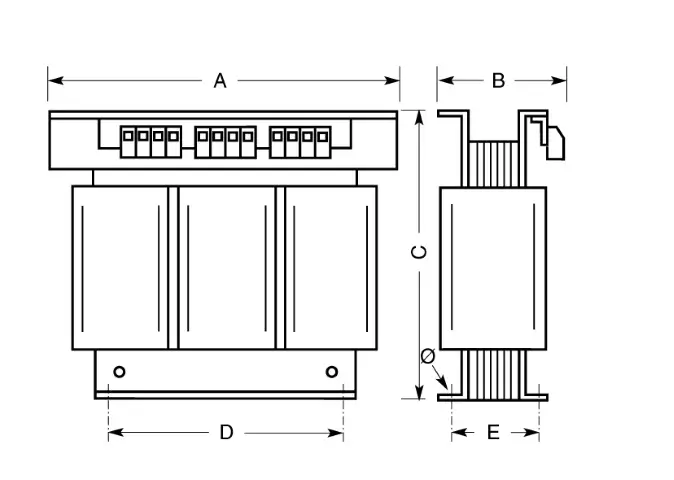

Size A x B x C (mm) 480x190x415mm
Size D (mm) 320mm
Size E (mm) 160mm
Weight 84kg
Primary connection Screw terminals 10 mm;
Secondary connection Screw terminals 10 mm;
Finish Vacuum and pressure impregnated
Φ (mm) 11 mm

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20BTE/040
Option enclosure IP23 (accessoire) K23BTE/040
Option Damper (accessoire) SILENT BLOCK 50
