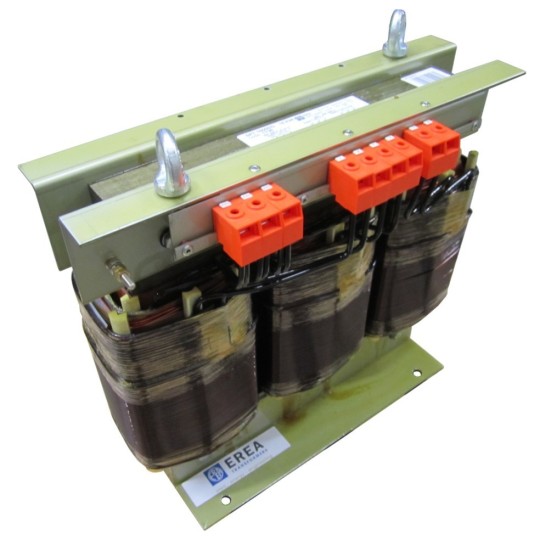

EREA 3 phase separating transformer 400V//230V-400V 16kVA SPT16000/D

Name: EREA 3 phase separating transformer 400V//230V-400V 16kVA SPT16000/D
Brand: EREA
SKU: SPT16000/D
Price: 4416.54 EUR

Item No.: SPT16000/D

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€5.888,72 €4.416,54

(Price excluding VAT): €3.650,03

You Save: 25%

Of betaal in termijnen vanaf €147,22 p/m. Meer info

EAN

5414503104960

SKU

SPT16000/D

Technical specifications
Brand	EREA
Commercial Order Number	SPT16000/D
EAN	5414503104960
Primary voltage	3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	16000VA (16KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60726 EN 60076
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	4.3%
Efficiency	95.2%
Pcu (W)	695 W
Po (W)	112 W
Size A x B x C (mm)	480x200x415mm
Size D (mm)	320 mm
Size E (mm)	160 mm
Weight	85kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum and pressure varnish impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire	U 2222720
Option enclosure IP23 (accessoire)	K23EI400/005
Option enclosure IP44 (accessoire)	K44EI400/010
Option Damper (accessoire)	SILENT BLOCK 50
