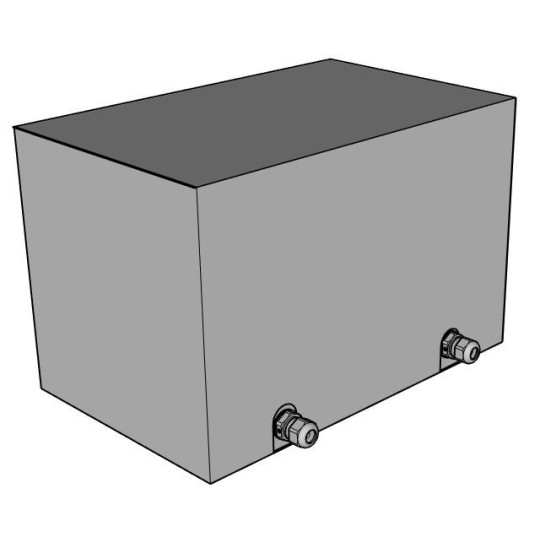

EREA 3 phase separating transformer 230-400V//230V-400V 50kVA SPT50000/IP65

Name: EREA 3 phase separating transformer 230-400V//230V-400V 50kVA SPT50000/IP65
Brand: EREA
SKU: SPT50000/IP65
Price: 17778.72 EUR
Availability: InStock

Item No.: SPT50000/IP65

Delivery time: Please contact us for current delivery times

€25.398,17 €17.778,72

(Price excluding VAT): €14.693,15

You Save: 30%

Of betaal in termijnen vanaf €592,62 p/m. Meer info

EAN

5414503121202

SKU

SPT50000/IP65

Technical specifications
Brand	EREA
Commercial Order Number	SPT50000/IP65
EAN	5414503121202
Class	Three-phase isolating transformer
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	50000VA (50KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 60726 EN 60076
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	1.28%
Efficiency	98.3%
Pcu (W)	1260 W
Po (W)	435 W
Size A x B x C (mm)	669x524x518mm
Weight	402kg
Primary connection	Nut fastening M12
Secondary connection	Nut fastening M12
Finish	Vacuum and pressure varnish impregnated
