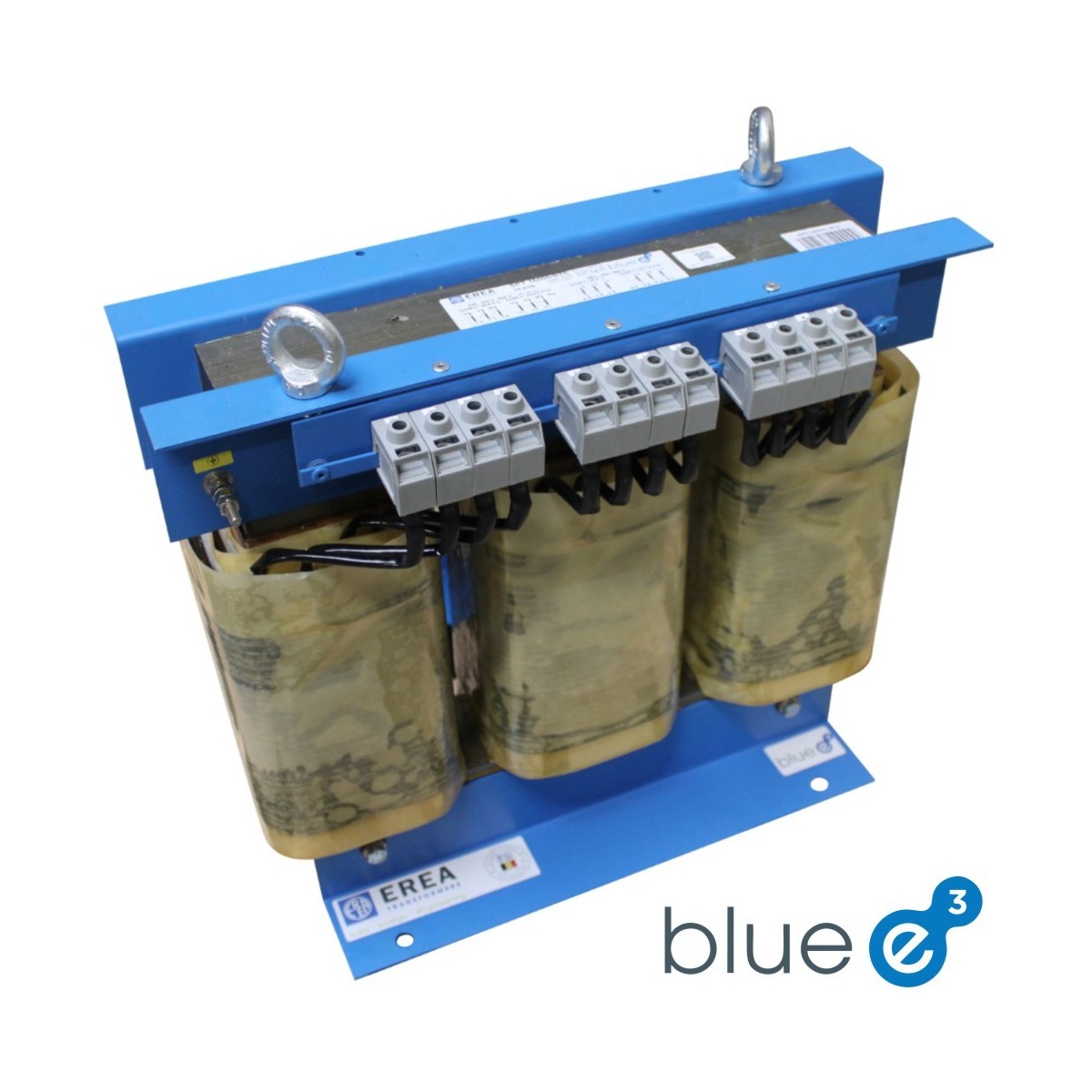

EREA 3 phase separating transformer 230-400V//230V-400V 20kVA SPT20000/BTE

Name: EREA 3 phase separating transformer 230-400V//230V-400V 20kVA SPT20000/BTE
Brand: EREA
SKU: SPT20000/BTE
Price: 6195.60 EUR
Availability: InStock

Item No.: SPT20000/BTE

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€8.850,86 €6.195,60

(Price excluding VAT): €5.120,33

You Save: 30%

Of betaal in termijnen vanaf €206,52 p/m. Meer info

EAN

5414503099204

SKU

SPT20000/BTE

Technical specifications
Brand	EREA
Commercial Order Number	SPT20000/BTE
EAN	5414503099204
Class	Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)

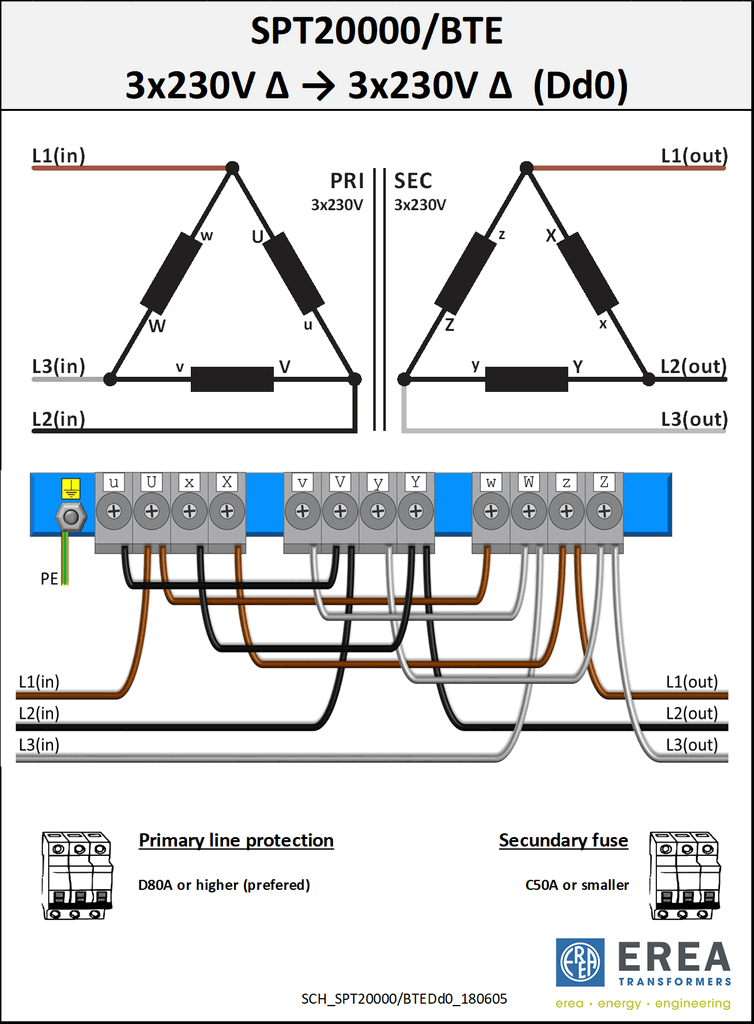

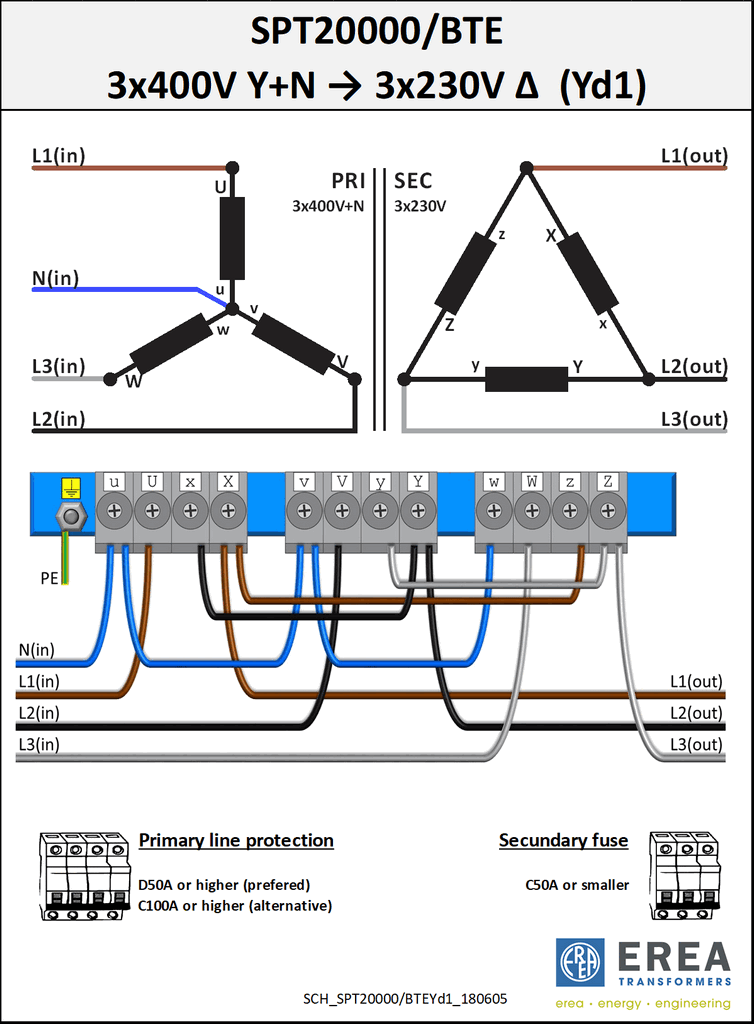

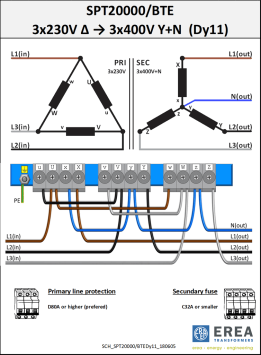

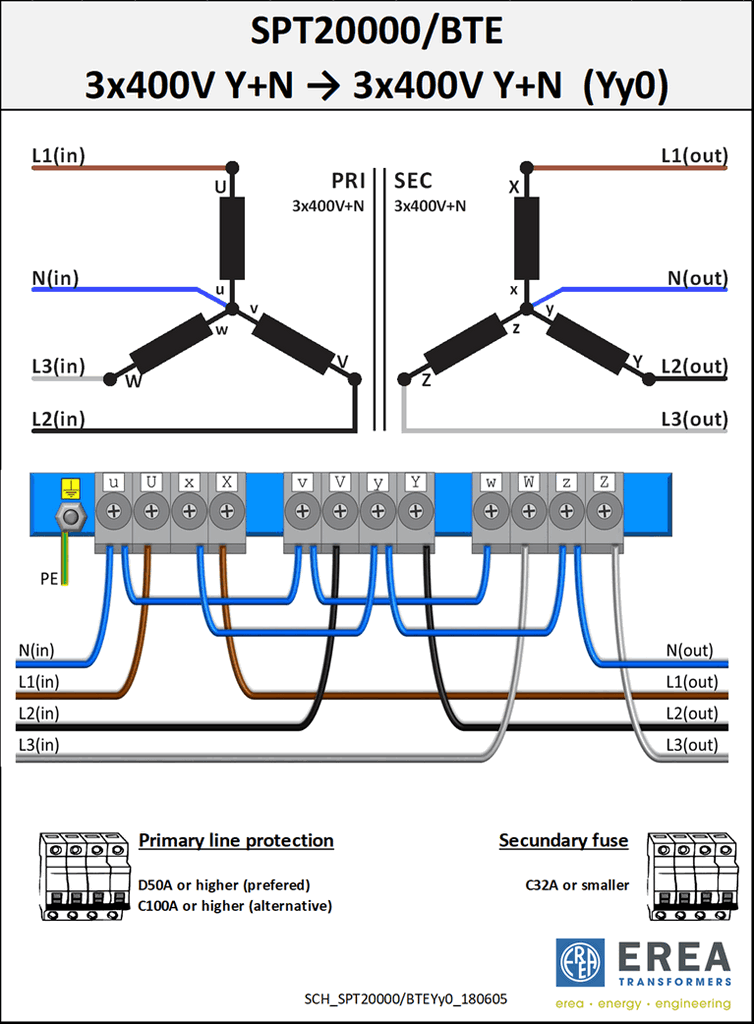

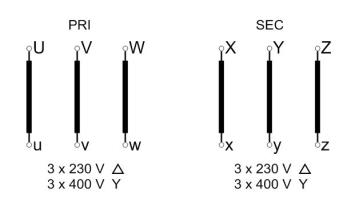

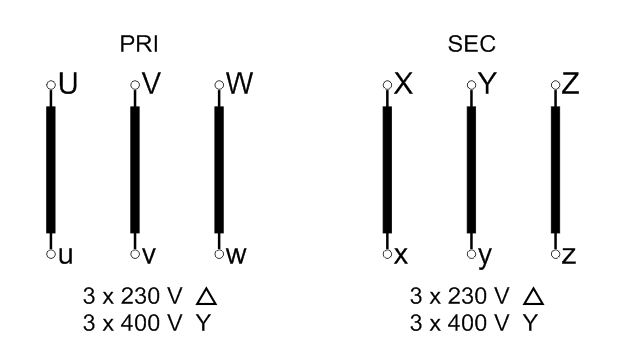

Primary voltage	3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	20000VA (20KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.65%
Efficiency	97.7%
Pcu (W)	354 W
Po (W)	117 W
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F

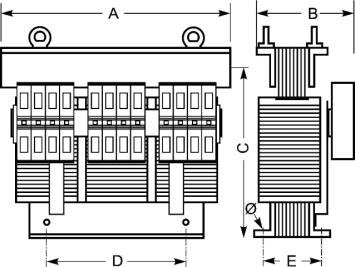

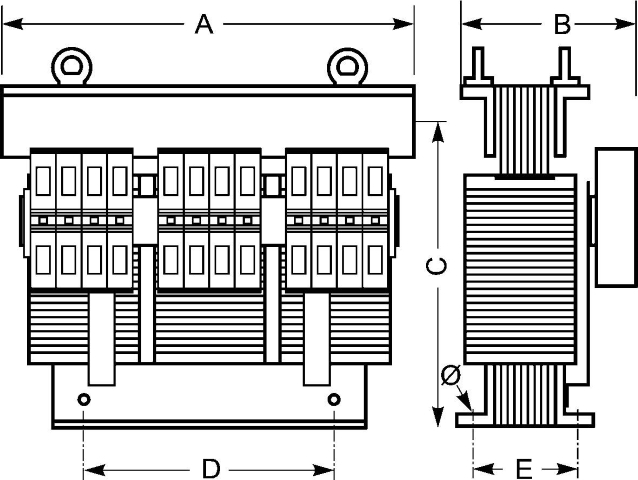

Size A x B x C (mm)	480x300x415mm
Size D (mm)	320mm
Size E (mm)	200mm
Weight	130kg
Primary connection	Nut fixing M8
Secondary connection	Nut fixing M8
Φ (mm)	11 mm
Finish	Vacuum and pressure impregnated

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/050
Option enclosure IP23 (accessoire)	K23BTE/050
Option Damper (accessoire)	SILENT BLOCK 50
