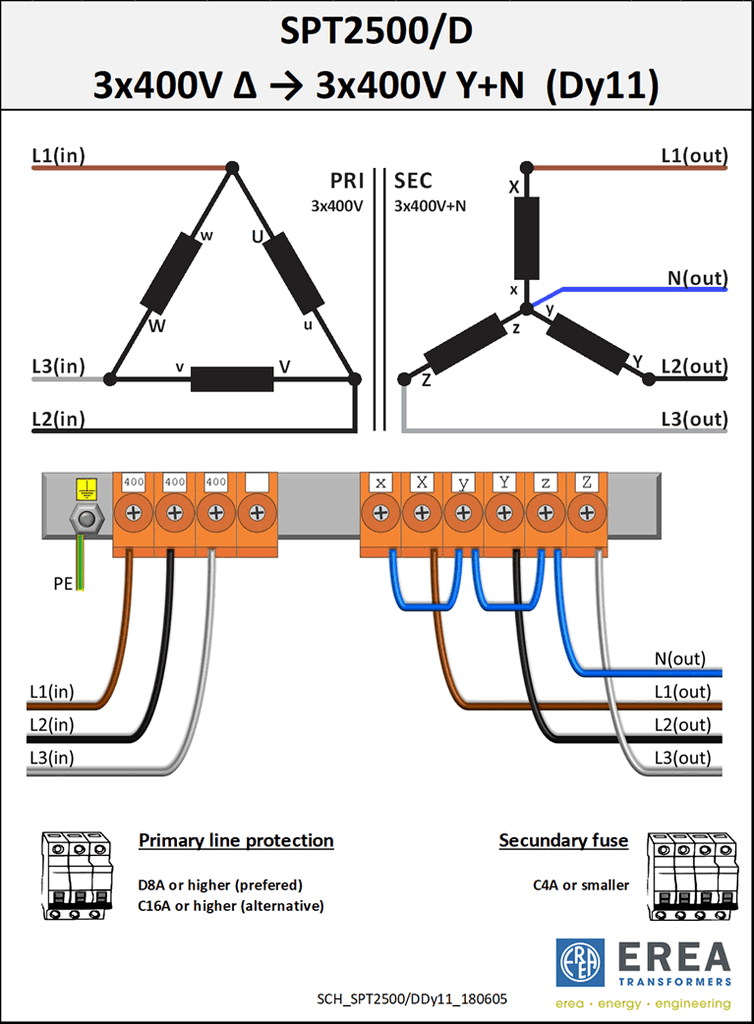

Aansluitschema 3x400V / 3x400V SPT2500/D

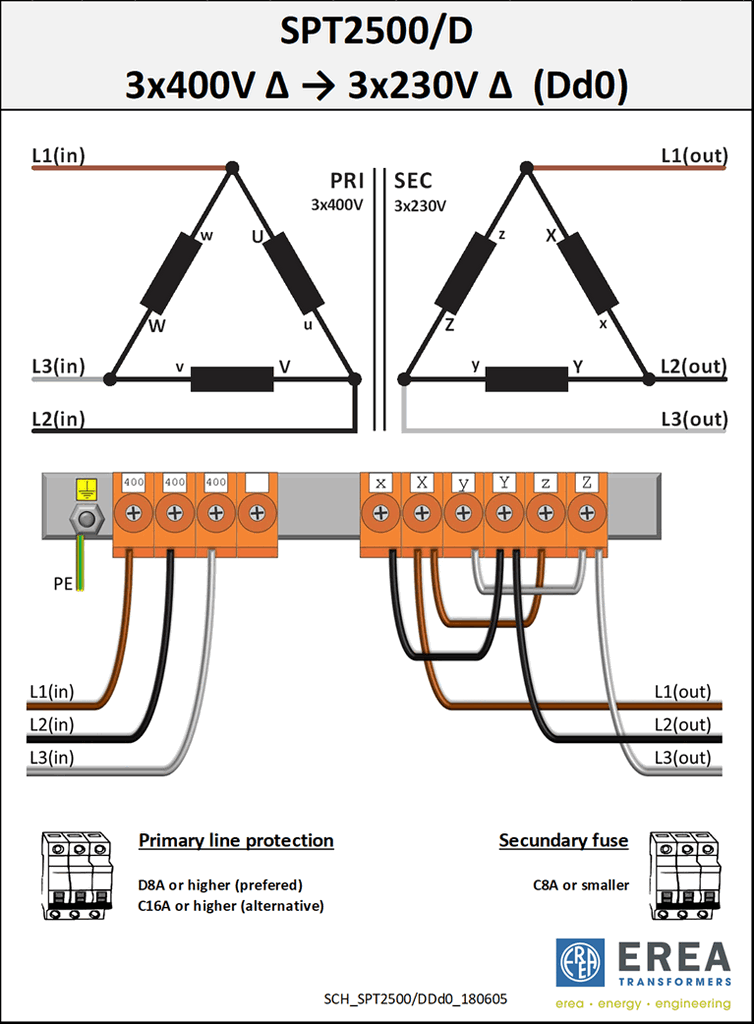

Aansluitschema 3x400V / 3x230V SPT2500/D

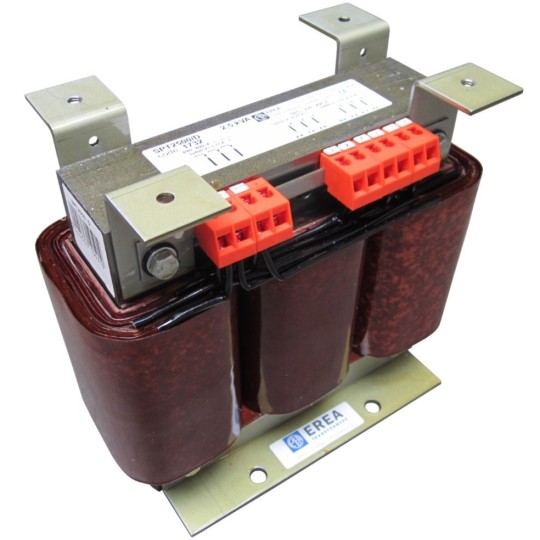

EREA 3 phase isolation transformer 400V//230V-400V 2,5kVA SPT2500/D

Name: EREA 3 phase isolation transformer 400V//230V-400V 2,5kVA SPT2500/D
Brand: EREA
SKU: SPT2500/D
Price: 989.12 EUR
Availability: InStock

Item No.: SPT2500/D

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€1.413,03 €989,12

(Price excluding VAT): €817,45

You Save: 30%

Of betaal in termijnen vanaf €32,97 p/m. Meer info

EAN

5414503105219

SKU

SPT2500/D

Technical specifications
Brand	EREA
Commercial Order Number	SPT2500/D
EAN	5414503105219
Class	Three-phase isolating transformer
Primary voltage	3x 400 Vac Y+N

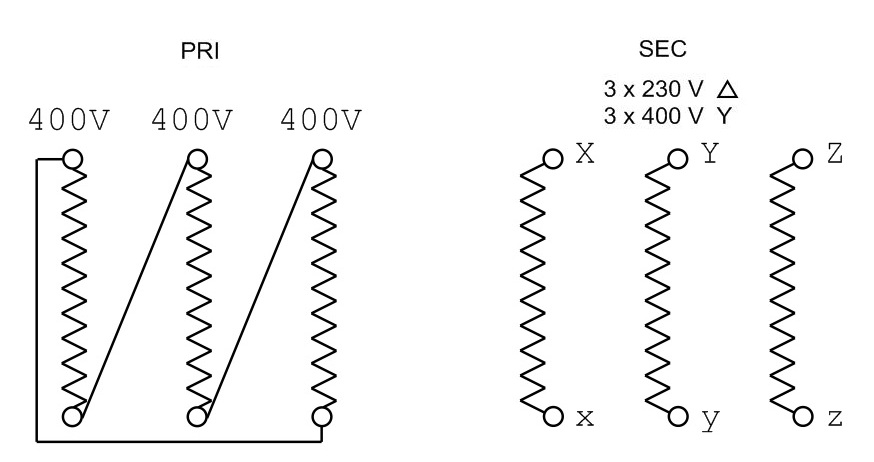

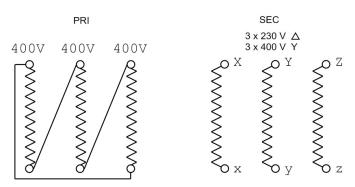

Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	2500VA (2.5KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	B
Voltage drop (dU%)	2.8%
Efficiency	95%
Pcu (W)	70 W
Po (W)	45.5 W

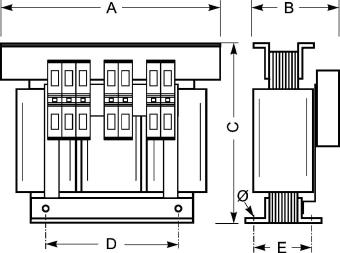

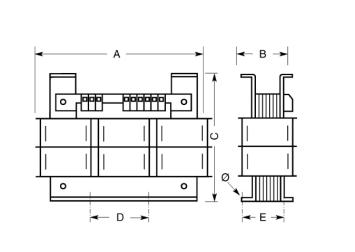

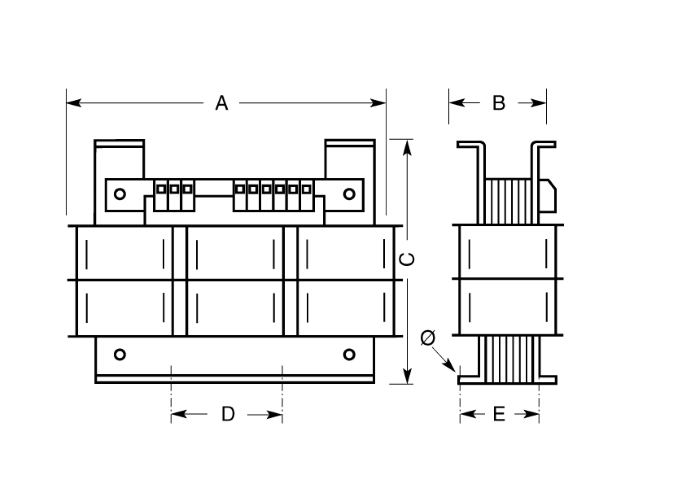

Size A x B x C (mm)	260x140x243 mm
Size D (mm)	100 mm
Size E (mm)	117 mm
Weight	27.3 kg
Primary connection	Screw terminals 2.5 mm²
Secondary connection	Screw terminals 2.5 mm²
Finish	Vacuum and pressure varnish impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire	K20EI220
Option enclosure IP23 (accessoire)	K23EI220/002
Option enclosure IP44 (accessoire)	K44EI220/010
Option Damper (accessoire)	SILENT BLOCK 20
