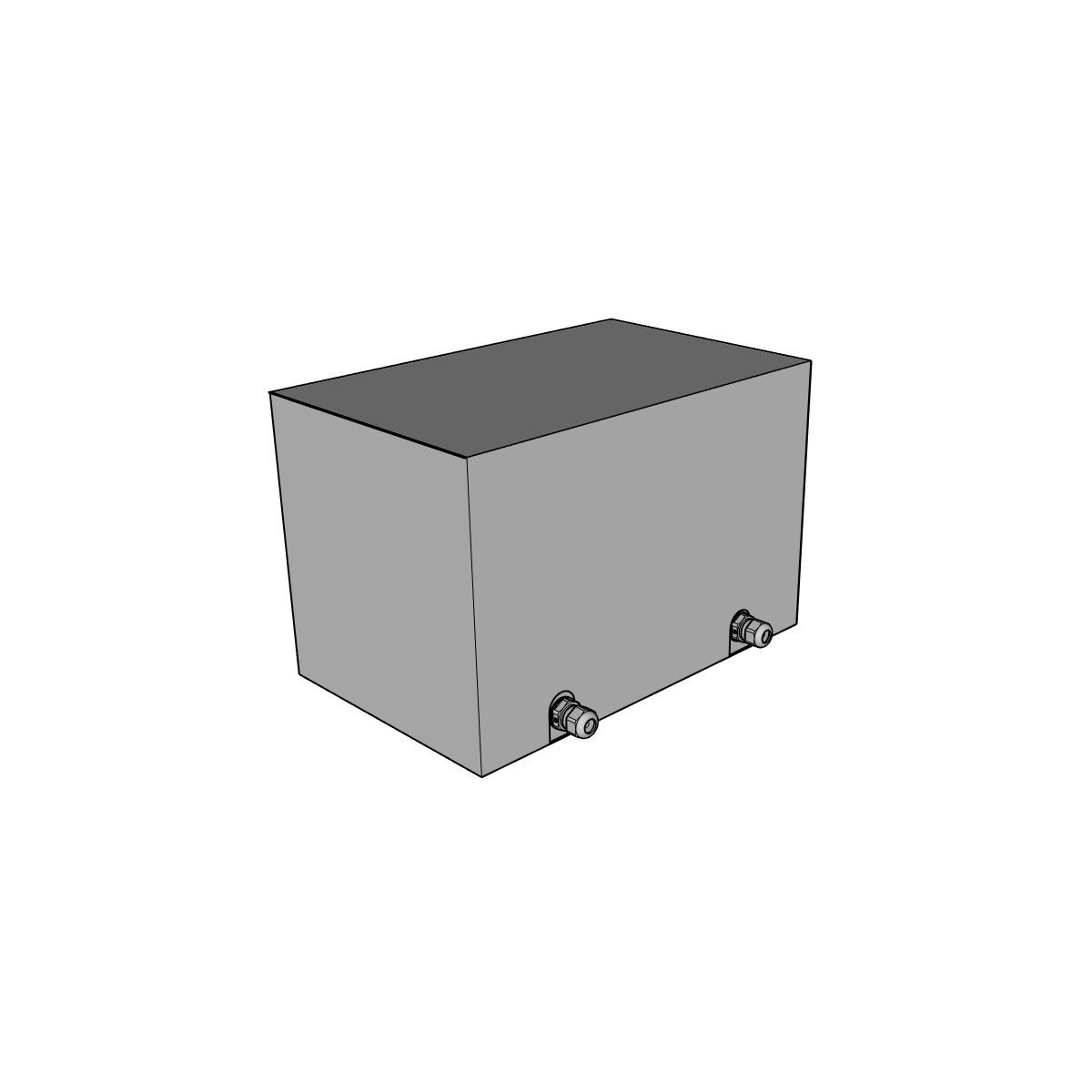

EREA 3 phase isolation transformer 400V//230V-400V 20kVA SPT20000/D/BTE/IP65

Name: EREA 3 phase isolation transformer 400V//230V-400V 20kVA SPT20000/D/BTE/IP65
Brand: EREA
SKU: SPT20000/D/BTE/IP65
Price: 9027.45 EUR
Availability: InStock

Item No.: SPT20000/D/BTE/IP65

Delivery time: Please contact us for current delivery times

€12.896,36 €9.027,45

(Price excluding VAT): €7.460,71

You Save: 30%

Of betaal in termijnen vanaf €300,92 p/m. Meer info

EAN

5414503121387

SKU

SPT20000/D/BTE/IP65

Technical specifications
Brand	EREA
Commercial Order Number	SPT20000/D/BTE/IP65
EAN	5414503121387
Series	Blue e³
Energy efficient	Yes
Class	Three-phase isolating transformer
Primary voltage	3x 400 Vac ∆
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	20000VA (20KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	1.33%
Efficiency	98%
Pcu (W)	451 W
Po (W)	176 W
Size A x B x C (mm)	539x429x433mm
Weight	212kg
Primary connection	Nut fixture M8
Secondary connection	Nut fixture M8
Finish	Vacuum and pressure varnish impregnated
