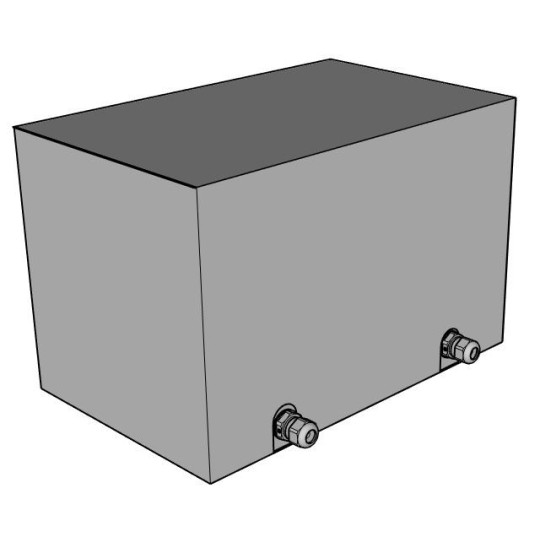

EREA 3 phase isolation transformer 400V//230V-400V 1kVA SPT1000/D/IP65

Name: EREA 3 phase isolation transformer 400V//230V-400V 1kVA SPT1000/D/IP65
Brand: EREA
SKU: SPT1000/D/IP65
Price: 1403.22 EUR

Item No.: SPT1000/D/IP65

Delivery time: Please contact us for current delivery times

€1.870,96 €1.403,22

(Price excluding VAT): €1.159,69

You Save: 25%

Of betaal in termijnen vanaf €46,77 p/m. Meer info

EAN

5414503121066

SKU

SPT1000/D/IP65

Technical specifications
Brand	EREA
Commercial Order Number	SPT1000/D/IP65
EAN	5414503121066
Primary voltage	3x 400 Vac ∆
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1000VA (1KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	3.15%
Efficiency	94%
Pcu (W)	52 W
Po (W)	45.5 W
Size A x B x C (mm)	279x234x233mm
Weight	23kg
Primary connection	Screw terminals 2.5 mm²
Secondary connection	Screw terminals 2.5 mm²
Finish	Vacuum and pressure varnish impregnated
