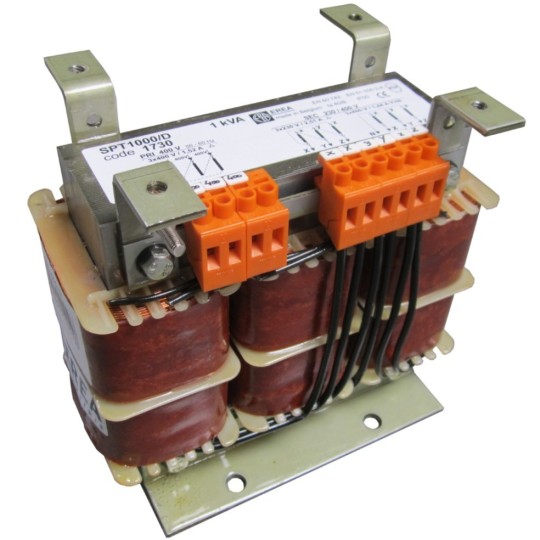

EREA 3 phase isolation transformer 400V//230V-400V 1kVA SPT1000/D

Name: EREA 3 phase isolation transformer 400V//230V-400V 1kVA SPT1000/D
Brand: EREA
SKU: SPT1000/D
Price: 608.15 EUR

Item No.: SPT1000/D

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€810,87 €608,15

(Price excluding VAT): €502,61

You Save: 25%

Of betaal in termijnen vanaf €20,27 p/m. Meer info

EAN

5414503105196

SKU

SPT1000/D

Technical specifications
Brand	EREA
Commercial Order Number	SPT1000/D
EAN	5414503105196
Class	Three-phase isolating transformer
Primary voltage	3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1000VA (1KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	B
Voltage drop (dU%)	4.7%
Efficiency	93%
Pcu (W)	47 W
Po (W)	22.5 W
Size A x B x C (mm)	180x110x175mm
Size D (mm)	75mm
Size E (mm)	90mm
Weight	10.3kg
Primary connection	Screw terminals 2.5 mm²
Secondary connection	Screw terminals 2.5 mm²
Finish	Vacuum and pressure varnish impregnated
Φ (mm)	9 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire	K20EI150
Option enclosure IP23 (accessoire)	K23EI150/001
Option enclosure IP44 (accessoire)	K44EI220/010
Option Damper (accessoire)	SILENT BLOCK 20
