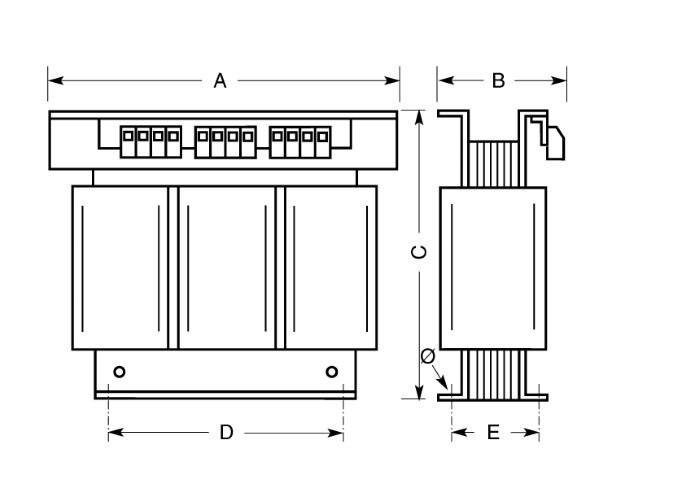

Dimensions SPT6300BTE

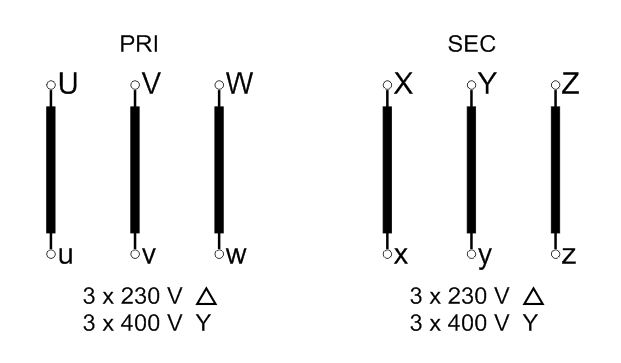

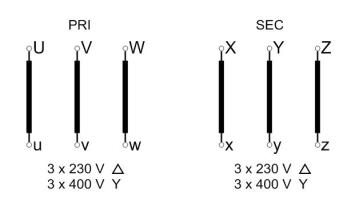

Electrical Diagram SPT6300BTE

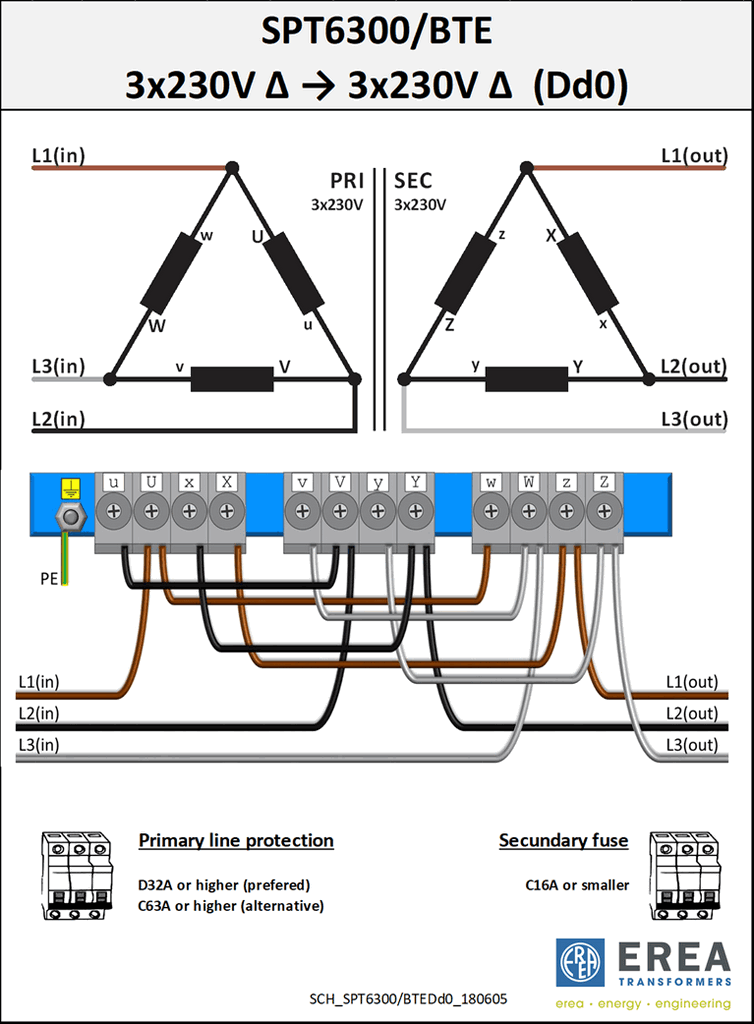

Connection Diagram DD0 SPT6300BTE

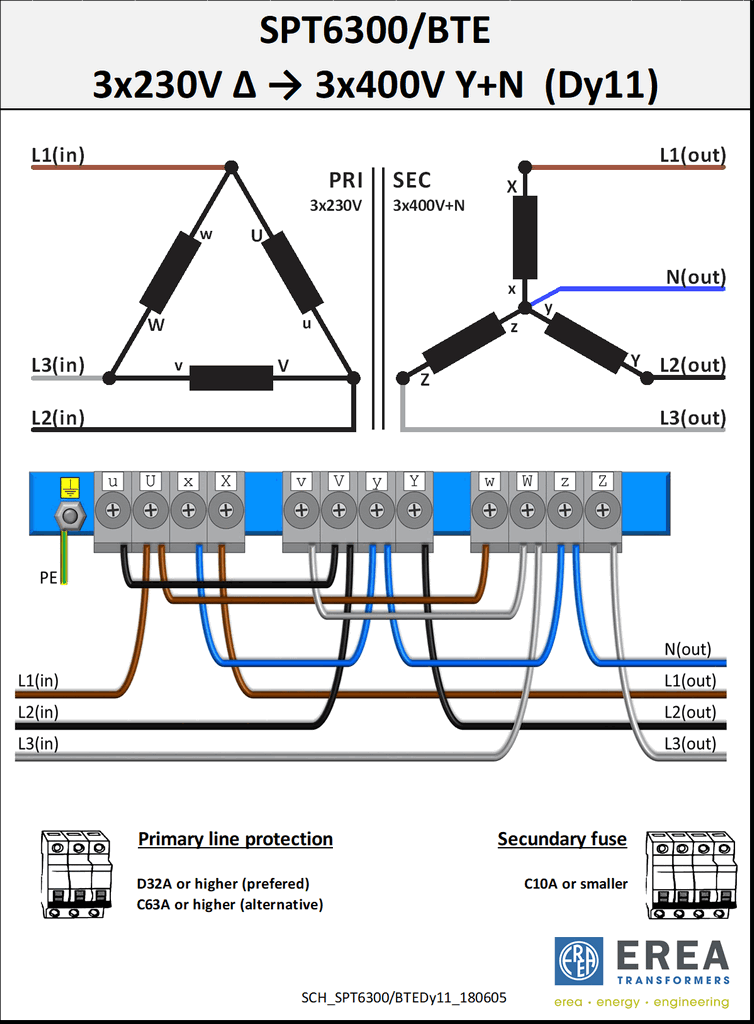

Connection Diagram Dy11 SPT6300BTE

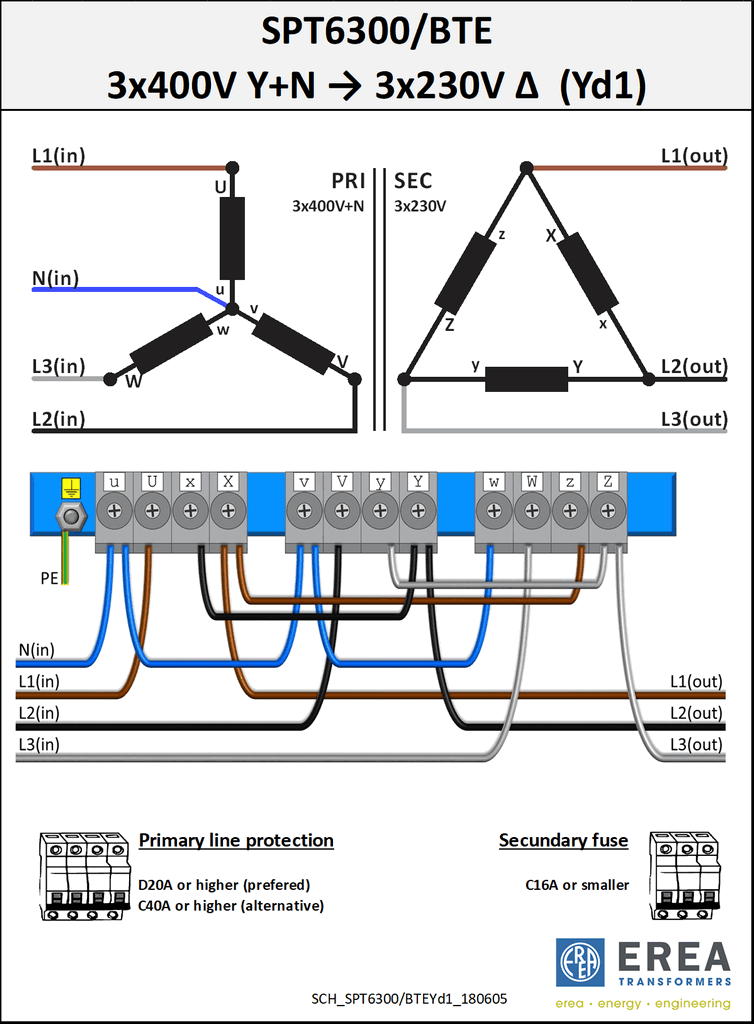

Connection Diagram Yd1 SPT6300BTE

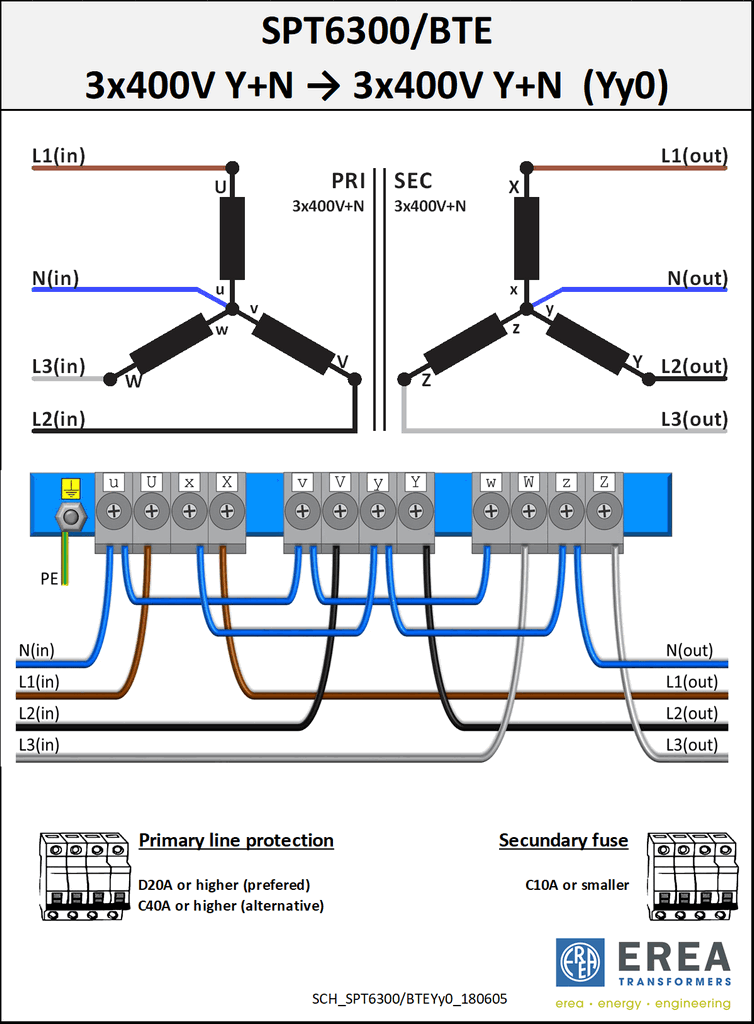

Connection Diagram Yy0 SPT6300BTE

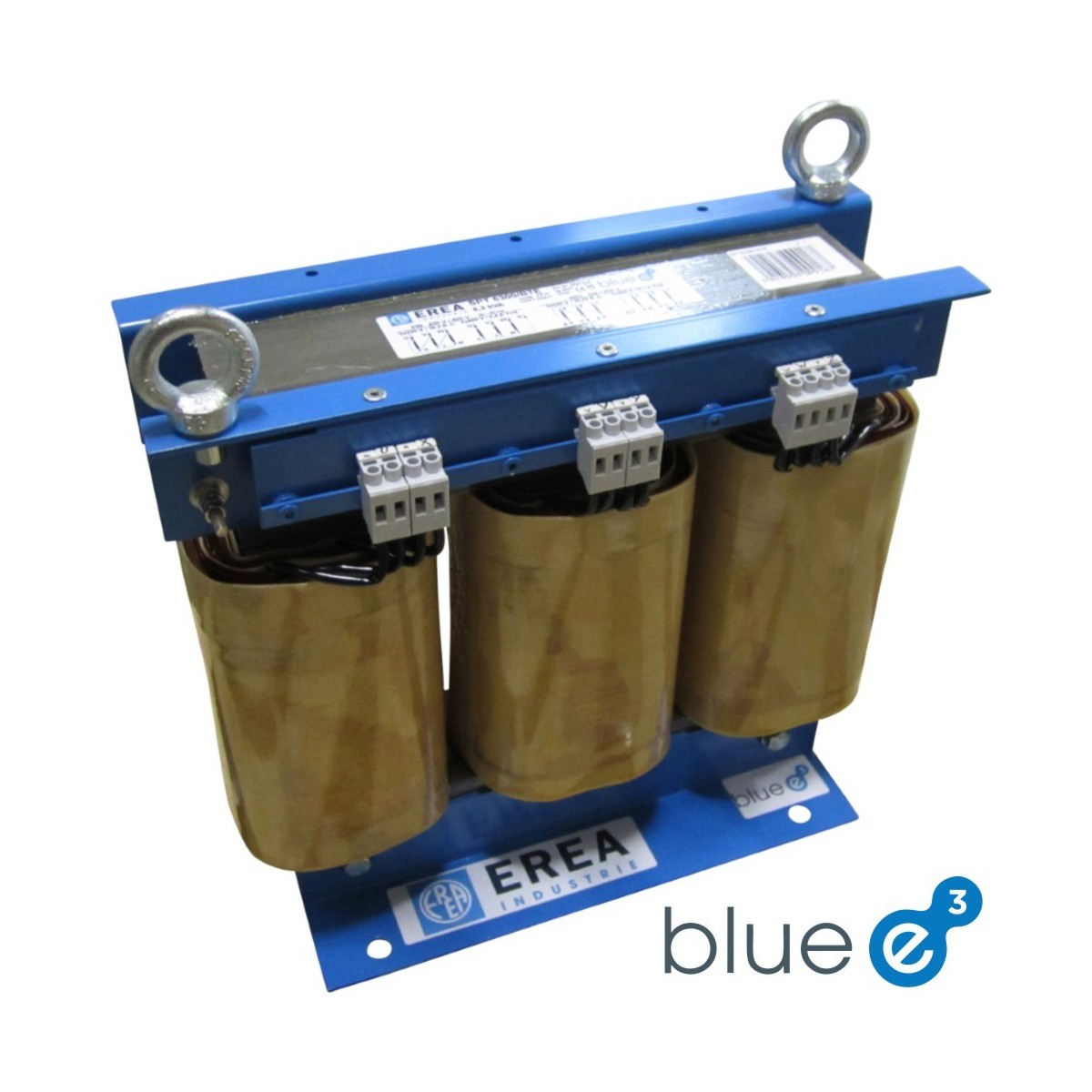

Transformator SPT6300BTE
spt6300bte
Dimensions SPT6300BTE
Electrical Diagram SPT6300BTE
Connection Diagram DD0 SPT6300BTE
Connection Diagram Dy11 SPT6300BTE
Connection Diagram Yd1 SPT6300BTE
Connection Diagram Yy0 SPT6300BTE
Transformator SPT6300BTE
Pin-it

EREA 3 phase energy efficient isolation transformer 230-400V//230V-400V 6,3kVA SPT6300/BTE

Item No.: SPT6300/BTE
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€3.350,64 €2.345,44
(Price excluding VAT): €1.938,38
You Save: 30%

Of betaal in termijnen vanaf €78,18 p/m. Meer info

EAN
5414503099167
SKU
SPT6300/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT6300/BTE
EAN 5414503099167
Class Three-phase isolating transformer
Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 6300VA (6.3KVA)
Voltage drop (dU%) 2.8%
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP00
Standards

EN 61558-2-4
Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Efficiency  96.7%
Pcu (W) 160 W
Po (W) 58 W
Size A x B x C (mm) 360x175x310mm
Size D (mm) 240mm
Size E (mm) 145mm
Weight 52.6kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Φ (mm) 11 mm
Finish Vacuum and pressure varnish impregnated

Options
On request Protection class II
Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Zig-Zag switching groups
Connections with sockets and power cords
With fuses
With electrostatic screens
Treatment for tropical resistance
Option Enclosure IP20 (accessory) K20BTE/030
Option Enclosure IP23 (accessory) K23BTE/035
Option Enclosure IP44 (accessory) K44BTE/030
Option Damper (accessory) SILENT BLOCK 20
