EREA 3 phase Autotransformer 0-230-400V 50kVA ATT 50000

Name: EREA 3 phase Autotransformer 0-230-400V 50kVA ATT 50000
Brand: EREA
SKU: ATT 50000
Price: 5060.68 EUR
Availability: InStock

Item No.: ATT 50000

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€7.229,54 €5.060,68

(Price excluding VAT): €4.182,38

You Save: 30%

Of betaal in termijnen vanaf €168,69 p/m. Meer info

EAN

5414503092427

SKU

ATT 50000

Technical specifications
Brand	EREA
Commercial Order Number	ATT 50000
EAN	5414503092427
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	50000VA (50KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.6%
Efficiency (%)	98.4%
Pcu (W)	680 W
Po (W)	130 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F

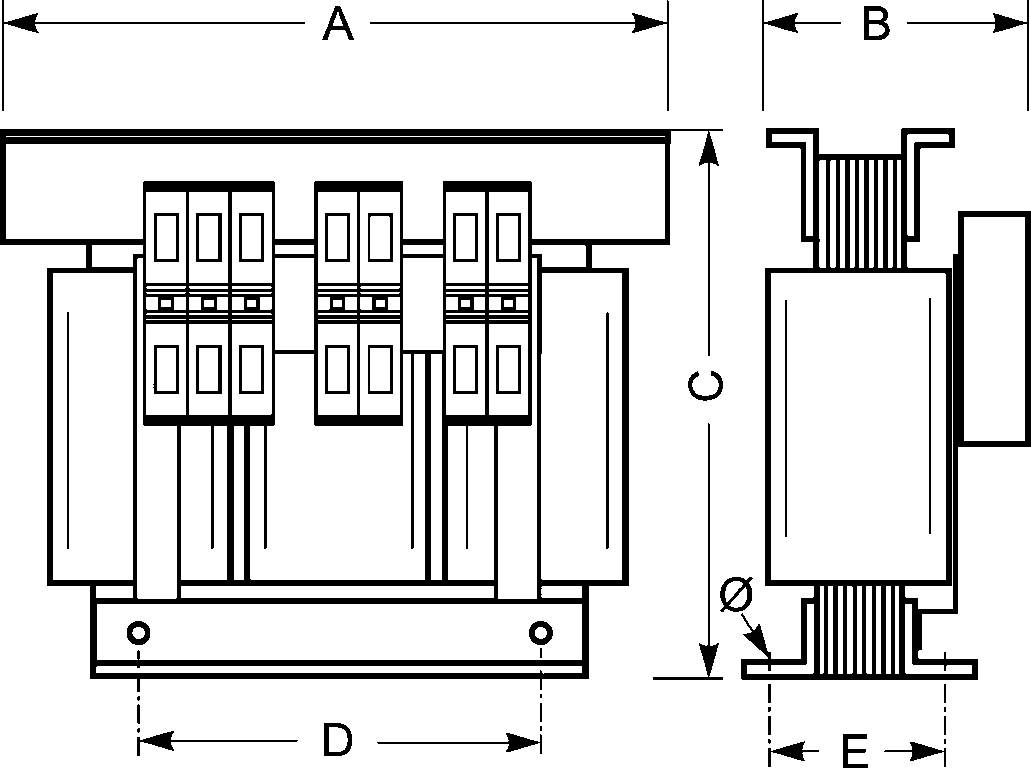

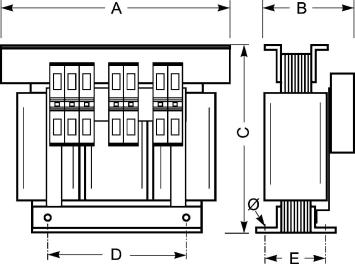

Size A x B x C (mm)	480x290x415mm
Size D (mm)	320mm
Size E (mm)	175mm
Weight	101.5kg
Primary connection	Nut fastening M10
Secondary connection	Nut fastening M10
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Degree of protection IP23, IP44 and IP65 Other voltages and other powers Connections with sockets and power cords With fuses Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 2222721
Option Enclosure IP23 (accessory)	K23EI400/007
Option Enclosure IP44 (accessory)	K44EI400/020
Option Damper (accessory)	SILENT BLOCK 50
