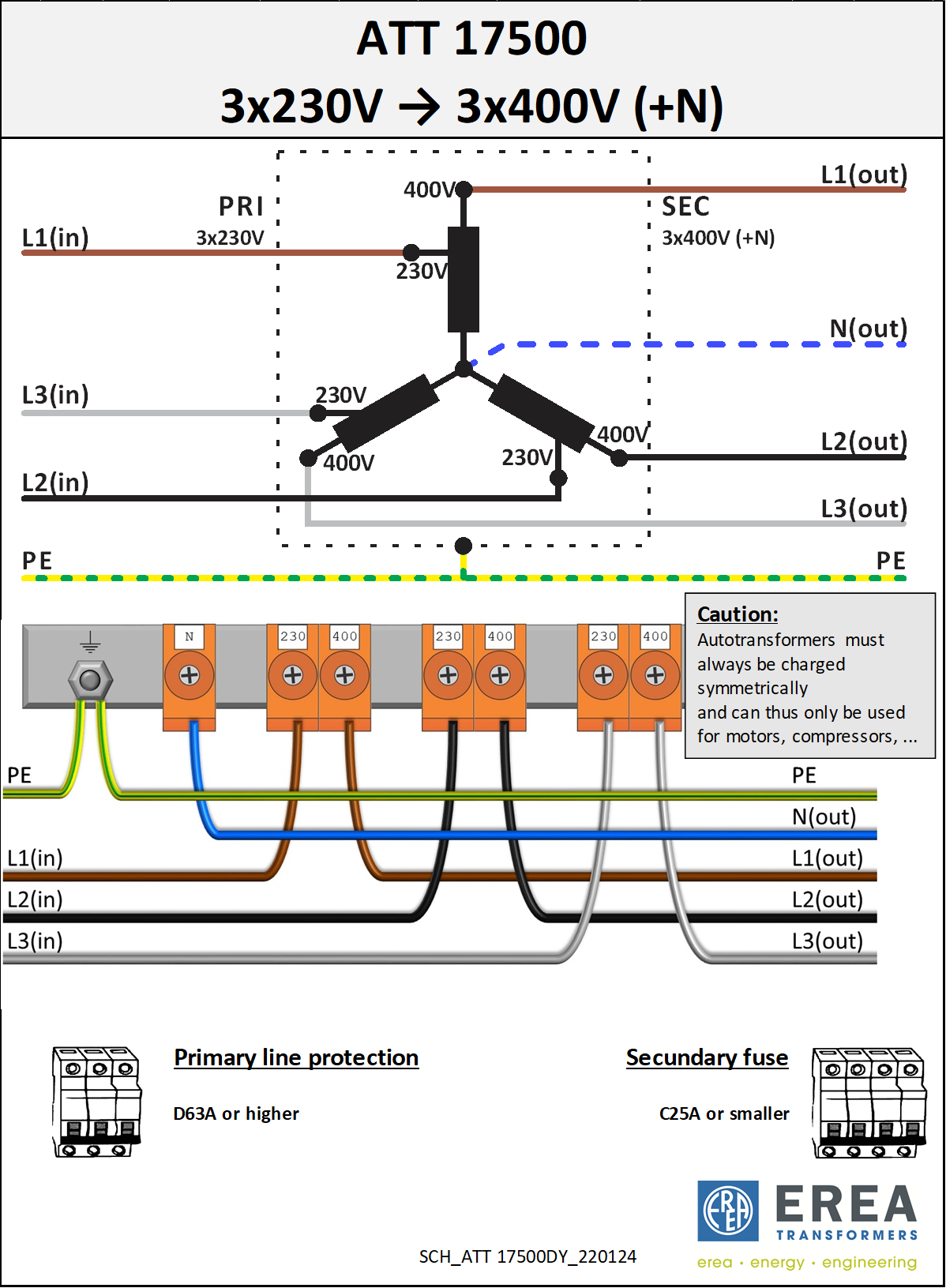

Aansluitschema 3x230V / 3x400V ATT 17500

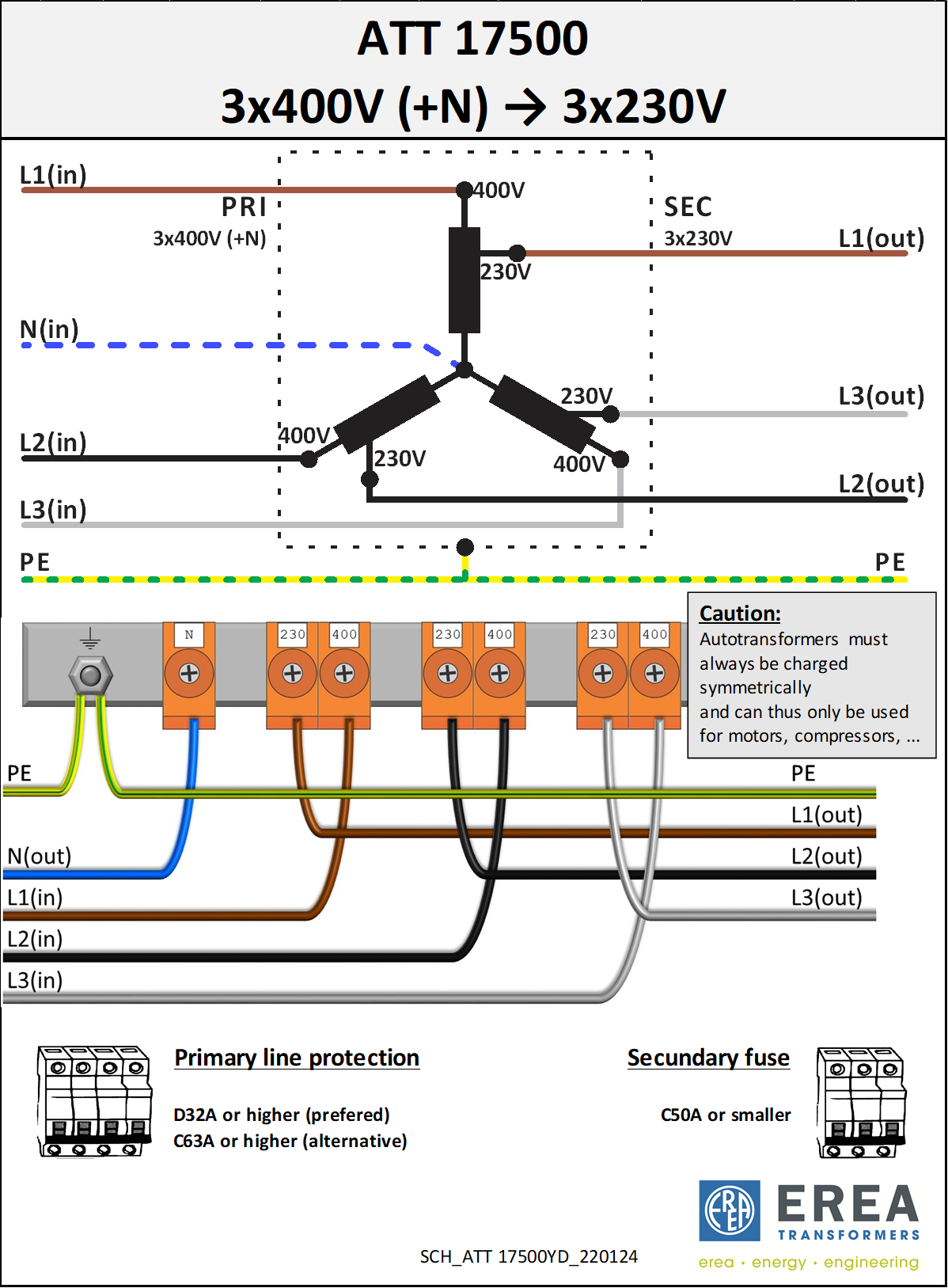

Aansluitschema 3x400V / 3x230V ATT 17500

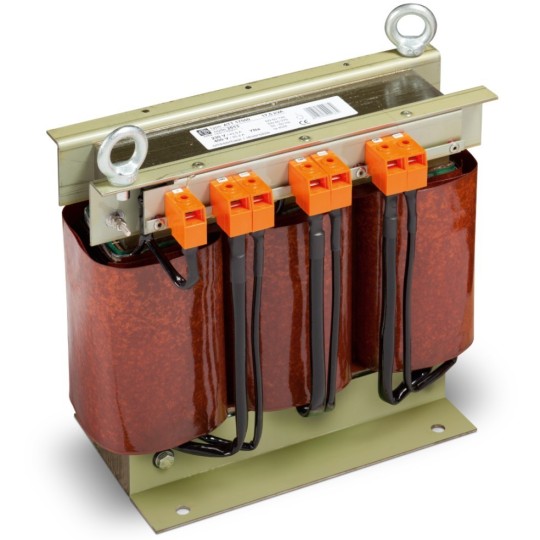

EREA 3 phase Autotransformer 0-230-400V 17,5kVA ATT 17500

Name: EREA 3 phase Autotransformer 0-230-400V 17,5kVA ATT 17500
Brand: EREA
SKU: ATT 17500
Price: 2217.40 EUR
Availability: InStock

Item No.: ATT 17500

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

€3.167,72 €2.217,40

(Price excluding VAT): €1.832,57

You Save: 30%

Of betaal in termijnen vanaf €73,91 p/m. Meer info

EAN

5414503000330

SKU

ATT 17500

Technical specifications
Brand	EREA
Commercial Order Number	ATT 17500
EAN	5414503000330
Class	Three-phase autotransformer

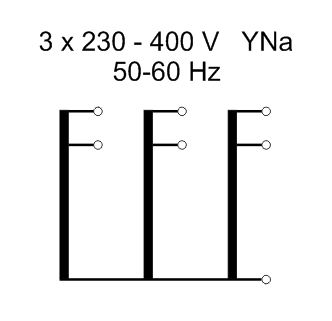

Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	17500VA (17.5KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.15%
Efficiency (%)	98%
Pcu (W)	188 W
Po (W)	85 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B

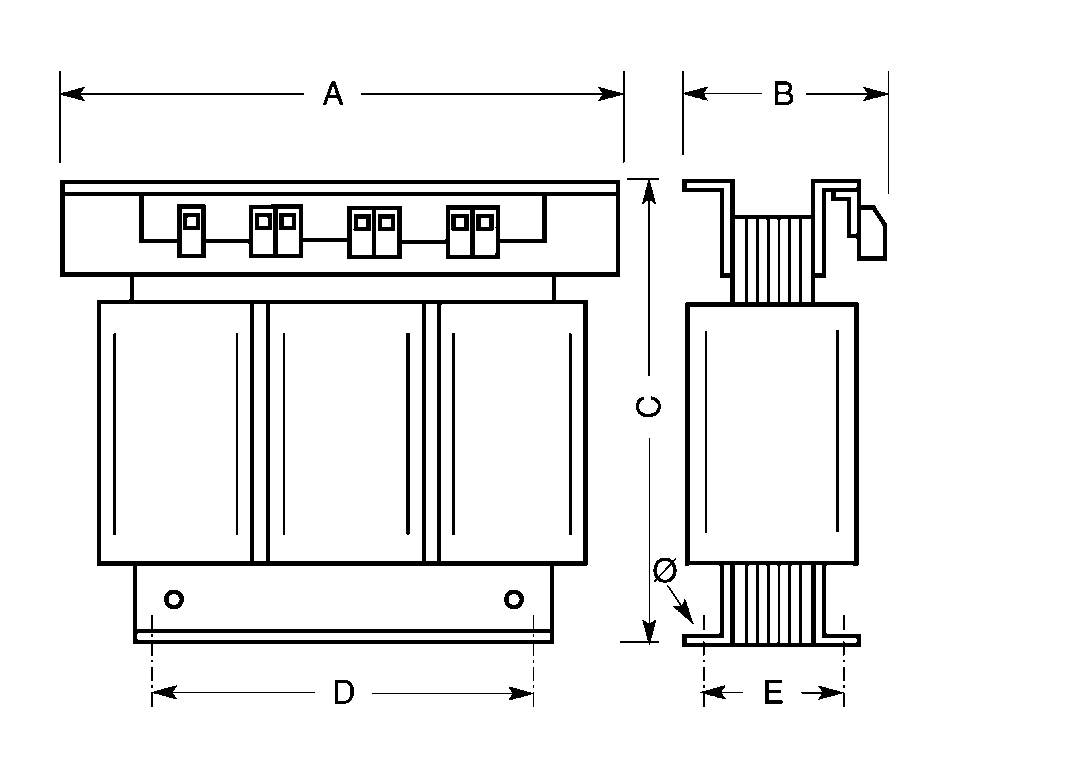

Size A x B x C (mm)	360x175x310mm
Size D (mm)	240mm
Size E (mm)	145mm
Weight	58.9kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Degree of protection IP23, IP44 and IP65 Other voltages and other powers Connections with sockets and power cords With fuses Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 222752
Option Enclosure IP23 (accessory)	K23EI300/005
Option Enclosure IP44 (accessory)	K44EI300/010
Option Damper (accessory)	SILENT BLOCK 20
