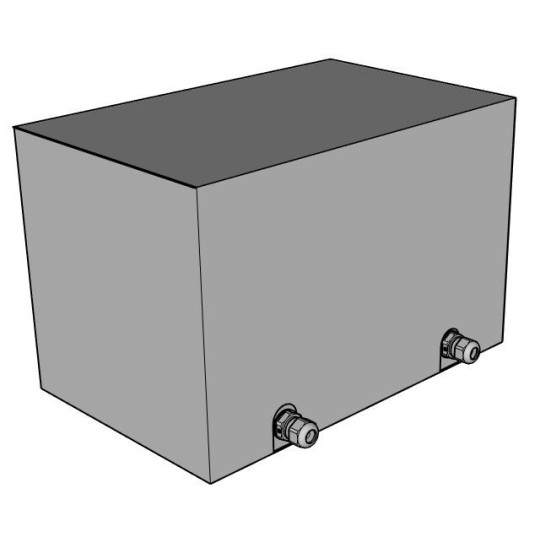

EREA 3 phase Autotransformer 0-230-400V 11kVA ATT 11000/IP65

Name: EREA 3 phase Autotransformer 0-230-400V 11kVA ATT 11000/IP65
Brand: EREA
SKU: ATT 11000/IP65
Price: 2924.55 EUR
Availability: InStock

Item No.: ATT 11000/IP65

Delivery time: Please contact us for current delivery times

€4.177,92 €2.924,55

(Price excluding VAT): €2.416,98

You Save: 30%

Of betaal in termijnen vanaf €97,48 p/m. Meer info

EAN

5414503079893

SKU

ATT 11000/IP65

Technical specifications
Brand	EREA
Commercial Order Number	ATT 11000/IP65
EAN	5414503079893
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	11000VA (11KVA)
Degree of protection	IP65
Voltage drop (dU%)	1.15%
Efficiency (%)	98%
Pcu (W)	118 W
Po (W)	85 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B
Size A x B x C (mm)	409x259x328mm
Weight	67kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum and pressure varnish impregnated
