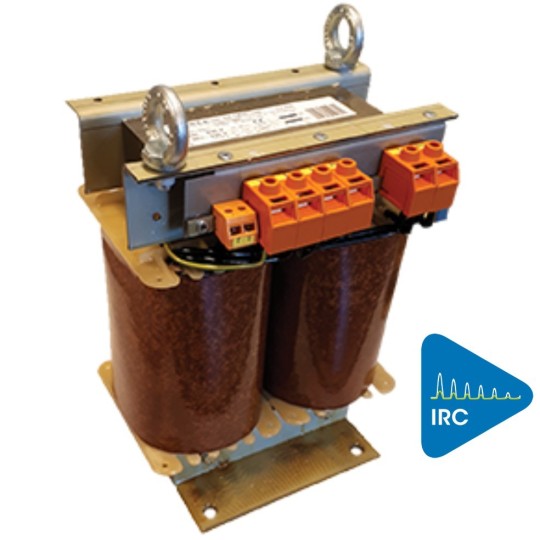

EREA 1 phase medical transformer 230V//230V 10kVA 230TMHD10000

Name: EREA 1 phase medical transformer 230V//230V 10kVA 230TMHD10000
Brand: EREA
SKU: 230TMHD10000
Price: 3284.92 EUR
Availability: InStock

Item No.: 230TMHD10000

Delivery time: Please contact us for current delivery times

Trillingsdemper

€4.692,74 €3.284,92

(Price excluding VAT): €2.714,81

You Save: 30%

Of betaal in termijnen vanaf €109,50 p/m. Meer info

EAN

5414503119896

SKU

230TMHD10000

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD10000
EAN	5414503119827
Class	Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 10000VA
Primary voltage	230 Vac
Secondary voltage	230 Vac
Power	10KVA
Degree of protection	IP00
Voltage drop (dU%)	2%
Dielectric Strenght (Vac)	4500Vac
Dielectric strength to mass (Vac))	2500Vac
Standards	EN 61558-2-15
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications in medical purpose rooms
Protection class	Prepared for class I
Efficiency	97.4%
Pcu (W)	174 W
Po (W)	89 W
Size A x B x C (mm)	280x280x365mm
Size D (mm)	180mm
Size E (mm)	223mm
Weight	90kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum- and pressure- varnish impregnated
Φ (mm)	11mm

Options
On request	Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)	SILENT BLOCK 50
