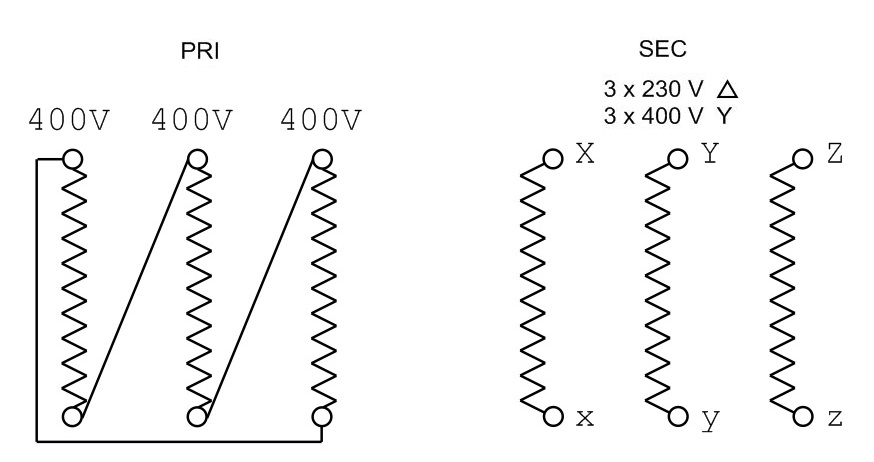

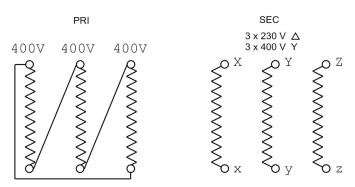

Electrical_Diagram_SPT_16000_D_BTE

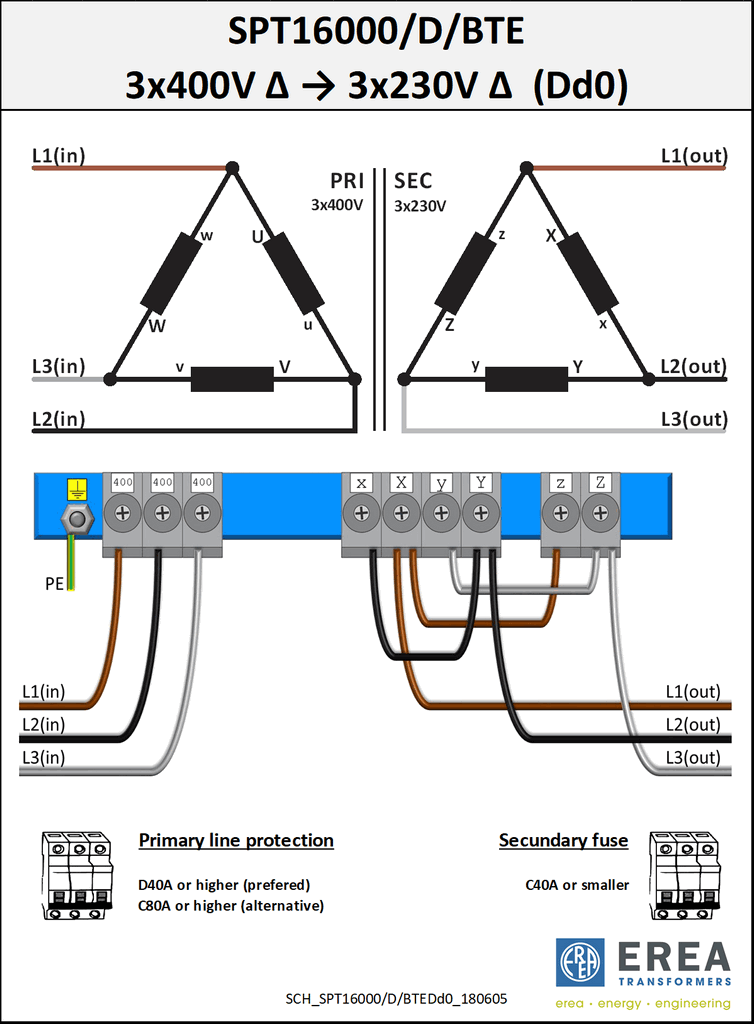

Connection_Diagram_DD0_SPT_16000_D_BTE

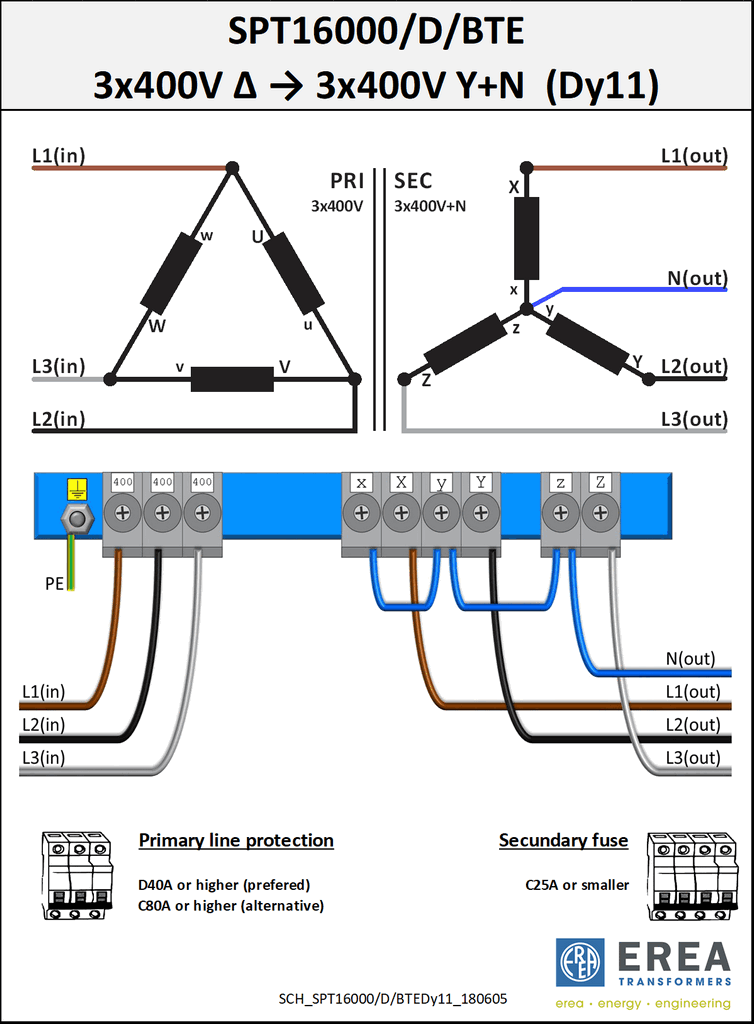

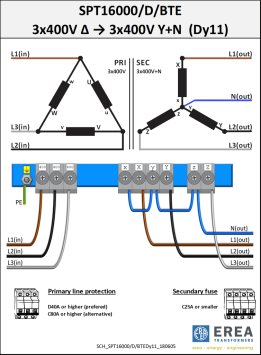

Connection_Diagram_Dy11_SPT_16000_D_BTE
Transformator_SPT16000DBTE
spt-16000-d-bte
Dimensions_SPT_16000_D_BTE
Electrical_Diagram_SPT_16000_D_BTE
Connection_Diagram_DD0_SPT_16000_D_BTE
Connection_Diagram_Dy11_SPT_16000_D_BTE
Transformator_SPT16000DBTE
Pin-it

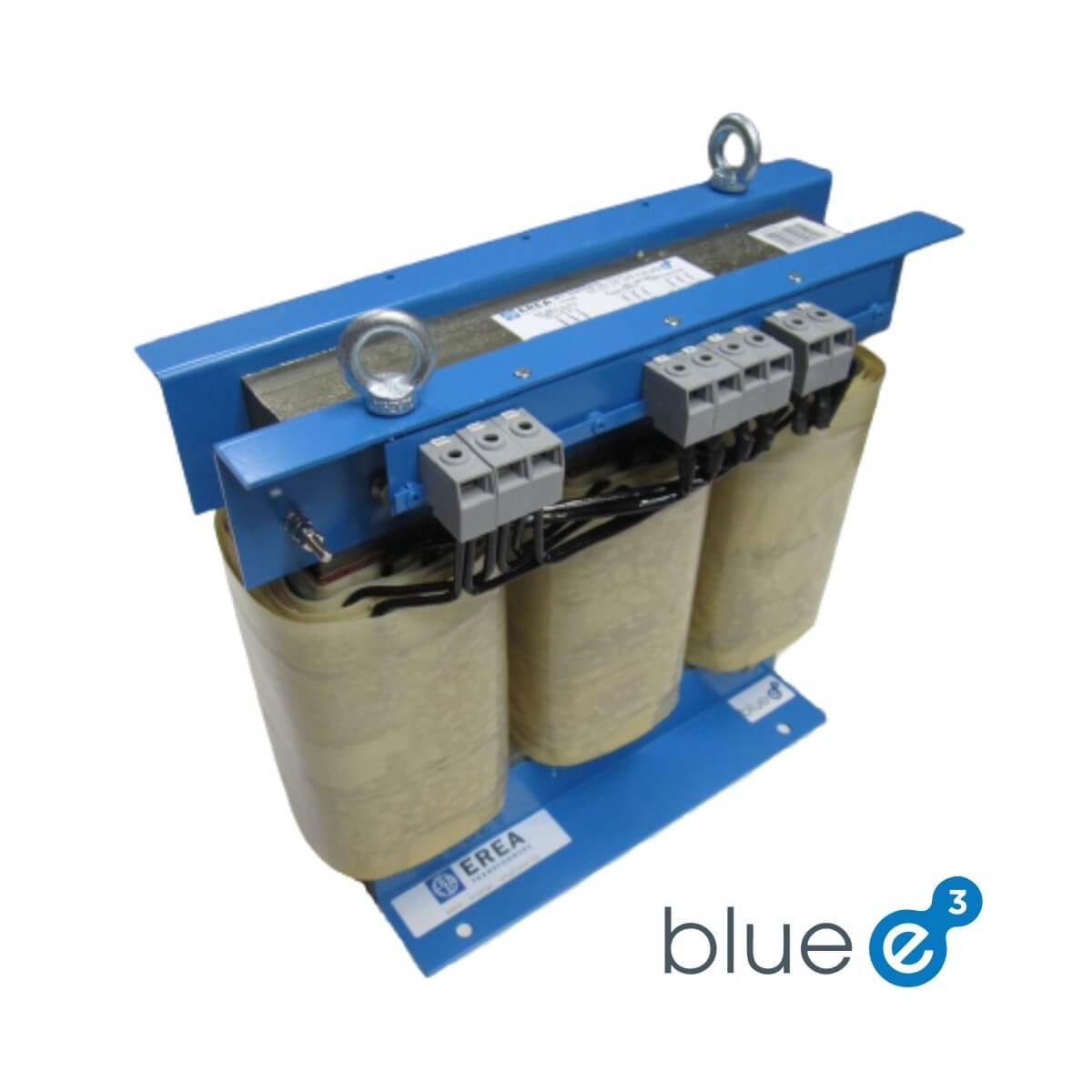

EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 16000VA (16KVA) SPT16000/D/BTE

Item No.: SPT 16000/D/BTE
EREA

Delivery time: 2-3 weeks (contact us)

Enclosure

Enclosure

Trillingsdemper

€7.225,41 €5.057,78
(Price excluding VAT): €4.179,99
You Save: 30%

Of betaal in termijnen vanaf €168,59 p/m. Meer info

EAN
5414503105349
SKU
SPT 16000/D/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT16000/D/BTE
EAN 5414503105349
Class Energy Efficient Protective Transformer (BTE)
Primary voltage 3x 400 Vac ∆
Secondary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 16000VA (16KVA)
Degree of protection IP00
Efficiency  97,5%
Pcu (W) 313W
Po (W) 102W
Voltage drop (dU%) 1,82%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class F

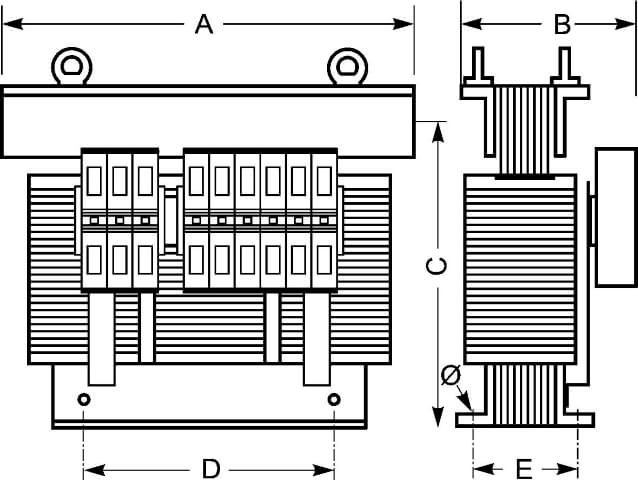

Size A x B x C (mm) 480x220x415mm
Size D (mm) 320mm
Size E (mm) 190mm
Weight 110kg
Primary connection Screw terminals 10 mm;
Secondary connection Screw terminals 10 mm;
Φ (mm) 11 mm
Application For Industrial Applications
Protection Class Prepared for Protection Class I
Finish Vacuum and pressure impregnated

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20BTE040
Option enclosure IP23 (accessoire) K23BTE/040
Option Damper (accessoire) SILENT BLOCK 50
