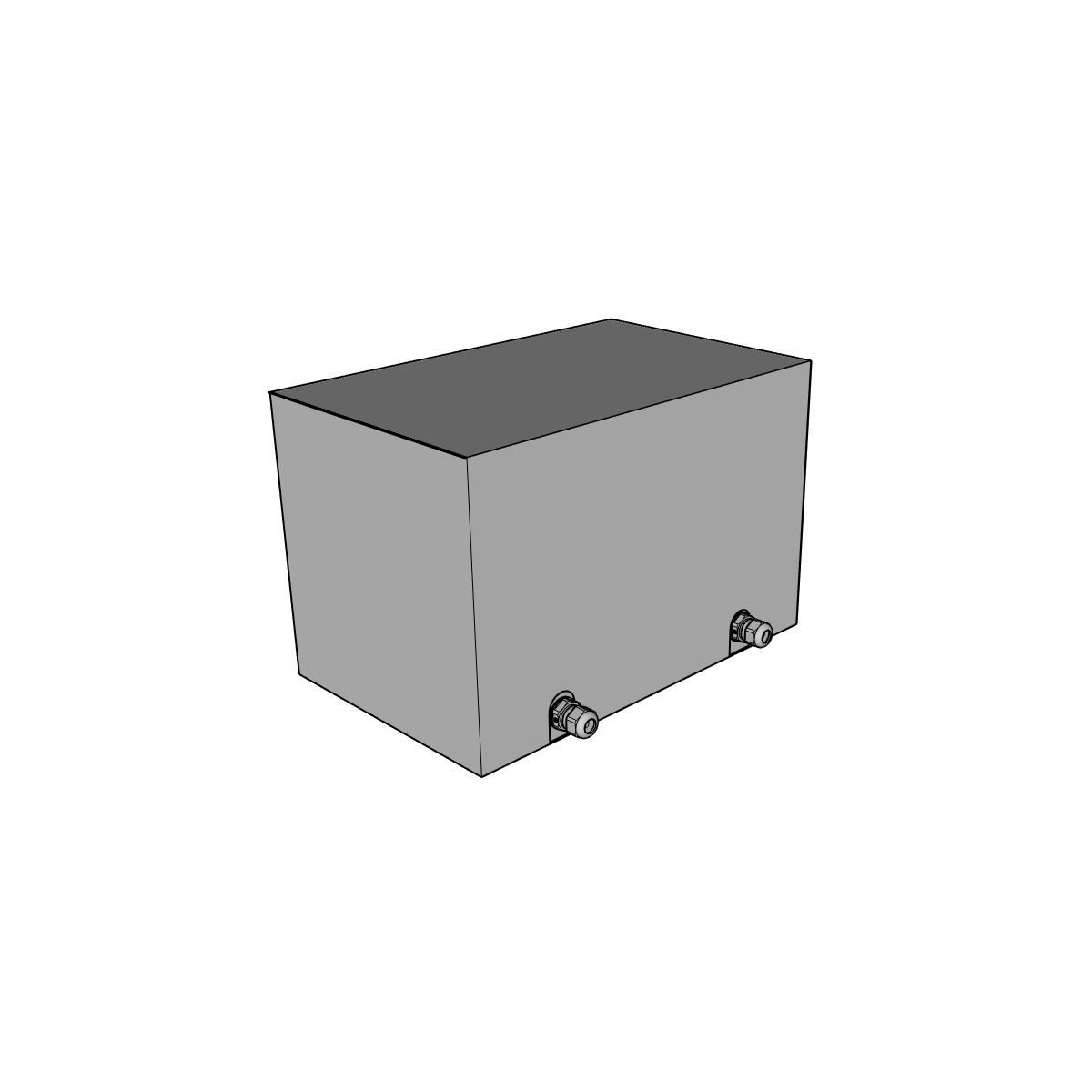

EREA 3 phase isolation transformer 400V//230V-400V 630VA SPT630/D/BTE/IP65

Name: EREA 3 phase isolation transformer 400V//230V-400V 630VA SPT630/D/BTE/IP65
Brand: EREA
SKU: SPT630/D/BTE/IP65
Price: 1410.25 EUR

Item No.: SPT630/D/BTE/IP65

Delivery time: 2-3 weeks (contact us)

€1.880,33 €1.410,25

(Price excluding VAT): €1.165,49

You Save: 25%

Of betaal in termijnen vanaf €47,01 p/m. Meer info

EAN

5414503121240

SKU

SPT630/D/BTE/IP65

Technical specifications
Brand	EREA
Commercial Order Number	SPT1600/D/BTE
EAN	5414503105295
Series	Blue e³
Energy efficient	Yes
Class	Energy Efficient Protective Transformer (BTE)
Primary voltage	3x 400 Vac ∆
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1600VA (1.6KVA)
Degree of protection	IP00
Diëlektrische vastheid (Vac)	4500 Vac
Voltage drop (dU%)	3.2%
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur Ta (°C)	40 °C
Temperature Class	F
Application	For Industrial Applications
Efficiency	95,7%
Pcu (W)	46 W
Po (W)	26 W
Size A x B x C (mm)	225x135x215mm
Size D (mm)	87mm
Size E (mm)	110mm
Weight	19kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum and pressure impregnated
Φ (mm)	10 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/010
Option enclosure IP23 (accessoire)	K23BTE/010
Option Damper (accessoire)	SILENT BLOCK 20
