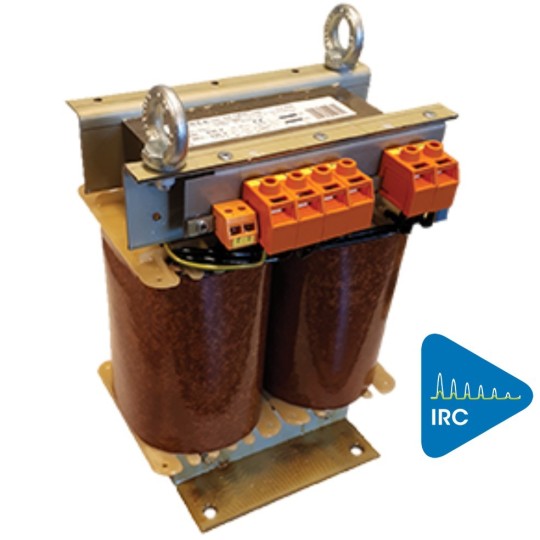

EREA 1 phase medical transformer 230V//230V 3,3kVA 230TMHD3300

Item No.: 230TMHD3300

Delivery time: Please contact us for current delivery times

Trillingsdemper

2.027,04 1.418,93
(Price excluding VAT): 1.172,67
You Save: 30%

Of betaal in termijnen vanaf 47,30 p/m. Meer info

EAN
5414503119841
SKU
230TMHD3300

Technical specifications

Brand EREA
Commercial Order Number 230TMHD3300
EAN 5414503119841
Class Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 3300VA
Primary voltage 230 Vac
Secondary voltage 230 Vac
Power 3.3KVA
Degree of protection IP00
Voltage drop (dU%) 2.8%
Dielectric Strenght (Vac) 4500Vac
Dielectric strength to mass (Vac)) 2500Vac
Standards

EN 61558-2-15

Max. ambient temperature Ta (°C) 50 °C
Temperature class B
Application For all applications in medical purpose rooms
Protection class Prepared for class I
Efficiency 96.8%
Pcu (W) 90 W
Po (W) 37 W
Size A x B x C (mm) 240x200x310mm
Size D (mm) 150mm
Size E (mm) 158mm
Weight 39kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Finish Vacuum- and pressure- varnish impregnated
Φ (mm) 11mm

Options

On request Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory) SILENT BLOCK 50
