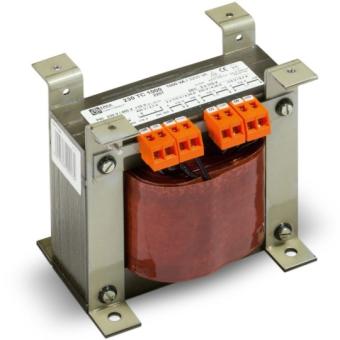

EREA 1 phase medical transformer 230V//230V 2,2kVA 230TMHD2200/BTE

Name: EREA 1 phase medical transformer 230V//230V 2,2kVA 230TMHD2200/BTE
Brand: EREA
SKU: 230TMHD2200/BTE
Price: 1609.09 EUR
Availability: InStock

Item No.: 230TMHD2200/BTE

Delivery time: Please contact us for current delivery times

Trillingsdemper

€2.298,70 €1.609,09

(Price excluding VAT): €1.329,83

You Save: 30%

Of betaal in termijnen vanaf €53,64 p/m. Meer info

EAN

5414503119957

SKU

230TMHD2200/BTE

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD2200/BTE
EAN	5414503119957
Class	Single-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 2200VA
Primary voltage	230 Vac
Secondary voltage	230 Vac
Power	2.2KVA
Degree of protection	IP00
Dielectric Strenght (Vac)	4500Vac
Dielectric strength to mass (Vac))	2500Vac
Standards	EN 61558-2-15
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications in medical purpose rooms
Protection class	Prepared for class I
Voltage drop (dU%)	2.7%
Efficiency	97%
Pcu (W)	56 W
Po (W)	11 W

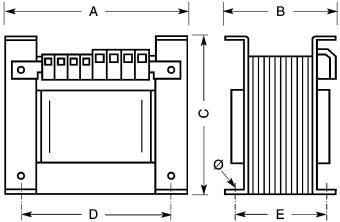

Size A x B x C (mm)	240x180x225mm
Size D (mm)	200mm
Size E (mm)	157mm
Weight	38kg
Primary connection	Screw terminals
Secondary connection	Screw terminals
Finish	Vacuum- and pressure- varnish impregnated
Φ (mm)	11mm

Options
On request	Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)	SILENT BLOCK 50
