EREA 1 phase isolating transformer for electronic applications 230V/Us Multi-voltage 160VA E 42TR160

Name: EREA 1 phase isolating transformer for electronic applications 230V/Us Multi-voltage 160VA E 42TR160
Brand: EREA
SKU: E 42TR160
Price: 127.86 EUR
Availability: InStock

Item No.: E 42TR160

The minimum purchase order quantity for the product is 2.

€182,66 €127,86

(Price excluding VAT): €105,67

You Save: 30%

Request a quote?

EAN

5414503003164

SKU

E 42TR160

Technical specifications
Brand	EREA
Commercial Order Number	E 42TR160
EAN	5414503003164
Class	Single-phase isolating transformer for electronic applications - Upri 230V // Usec 0-13-15-18-21-23-27-31V 2x 0-13-15-18-21V - Power 160VA
Primary voltage	230 Vac
Secondary voltage	13-15-18-21-23-26-27-30-31-36-42 Vac
Power	160VA
Degree of protection	IP00
Dielectric strength to mass (Vac))	4000Vac
Standards	EN 61558-2-4 EN 60742
Max. ambient temperature Ta (°C)	40 °C
Temperature class	E
Application	Control circuits, contactors and electronic applications
Protection class	Prepared for class II
Efficiency	89.5%
Voltage drop (dU%)	9%
Pcu (W)	13.48W
Po (W)	5.14W

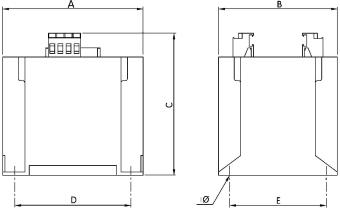

Size A x B x C (mm)	92x77x111mm
Size D (mm)	70mm
Size E (mm)	56mm
Weight	2.76kg
Primary connection	FAST-ON connectors 4,8 x 0,5 mm
Secondary connection	FAST-ON connectors 4,8 x 0,5 mm
Finish	Vacuum-encapsulated with synthetic resin
Φ (mm)	7mm

Options
On request	Other voltage and power ratings Connections with insulated wires and mains cables

Technische_fiche_E_42TR160_nl.pdf

Datasheet_E_42TR160_en.pdf
